One Instruction Set Computer Challenge from TetCTF - NOR VM (Elvis's Magic Box)
Elvis Magic Box
THIS WRITEUP IS VERY VERY LONG AND MOST OF THE PART IS NOT ACTUALLY RELATED TO THE VM. YOU CAN SKIP TO THE “THE MOMENT OF TRUTH” TO ACTUALLY READ THE SOLUTION.
After completing the previous CrackMe based on a very good Anti-Debug technique (which can be further improved as I pointed out in that post by reading a research paper), Elvis, the author of previous challenge gave me another challenge. He already gave me a major hint about the challenge which you usually don’t get in real world scenarios. This challenge is another VM challenge and is an OISC (One Instruction Set Computer)

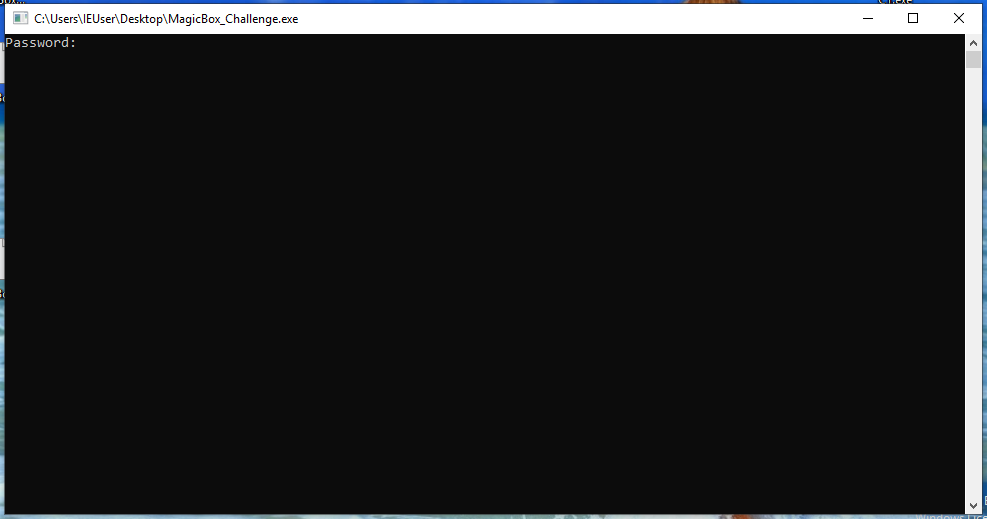

Running the executable shows a password prompt :
I type anything into it and it keeps watining until unless I exceed certain number of characters, after which it just exits. I don’t know this “certain number” yet but we can find this out by analyzing this in IDA.
Running this in IDA debugger successfully shows this prompt again but pausing the process is something else. We either run this process or stop it, no pausing and resuming execution. This might mean there is anti-debug or something more interesting to discover 🤩
Let’s analyze the start function of this program
aha… ok.. ok.. analysis of start complete 😆
This is spooky. I’ll rename these to mainfn1 and mainfn2 to be able to identify them when I encounter these again, but then again I can also check their XREFs and see when they are called or referenced, but this won’t be able to detect indirect references.
uintptr_t mainfn1() {
uintptr_t result; // eax
unsigned int v1; // ecx
LARGE_INTEGER PerformanceCount; // [esp+0h] [ebp-14h] BYREF
struct _FILETIME SystemTimeAsFileTime; // [esp+8h] [ebp-Ch] BYREF
DWORD v4; // [esp+10h] [ebp-4h] BYREF
if (__security_cookie == -1153374642 || (__security_cookie & 0xFFFF0000) == 0) {
SystemTimeAsFileTime.dwLowDateTime = 0;
SystemTimeAsFileTime.dwHighDateTime = 0;
GetSystemTimeAsFileTime( & SystemTimeAsFileTime);
v4 = SystemTimeAsFileTime.dwLowDateTime ^ SystemTimeAsFileTime.dwHighDateTime;

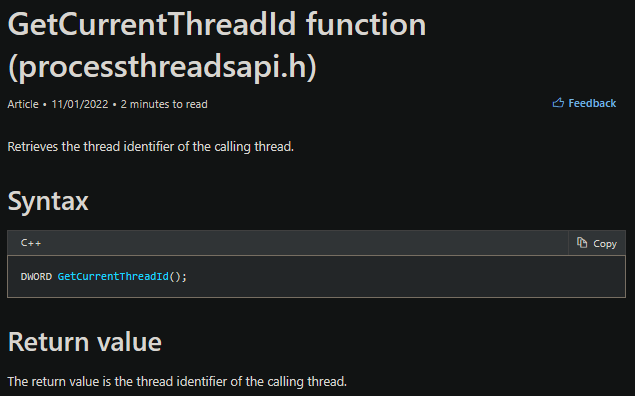

v4 ^= GetCurrentThreadId();

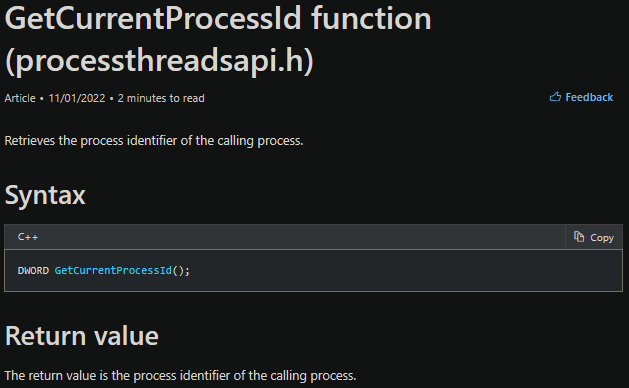

v4 ^= GetCurrentProcessId();

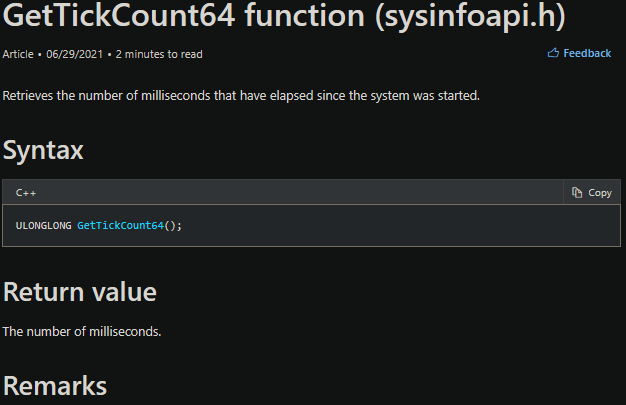

v4 ^= GetTickCount64();

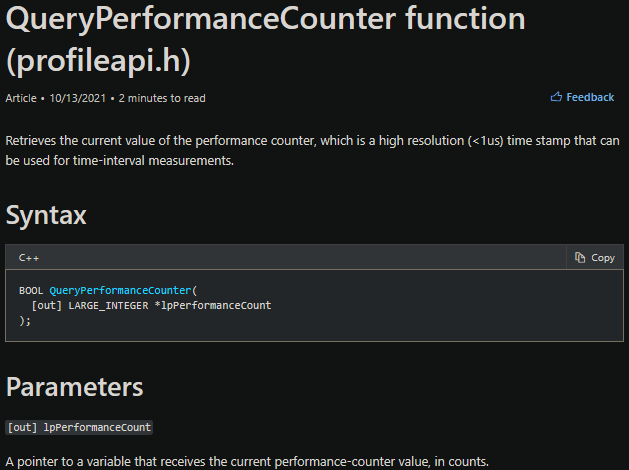

QueryPerformanceCounter( & PerformanceCount);
result = (uintptr_t) & v4;
v1 = (unsigned int) & v4 ^ v4 ^ PerformanceCount.LowPart ^ PerformanceCount.HighPart;
if (v1 == 0xBB40E64E) {
__security_cookie = 0xBB40E64F;
dword_B44008 = 0x44BF19B0;
} else {
if ((v1 & 0xFFFF0000) == 0) {
result = (v1 | 0x4711) << 16;
v1 |= result;
}
__security_cookie = v1;
dword_B44008 = ~v1;
}
} else {
result = ~__security_cookie;
dword_B44008 = ~__security_cookie;
}
return result;
}

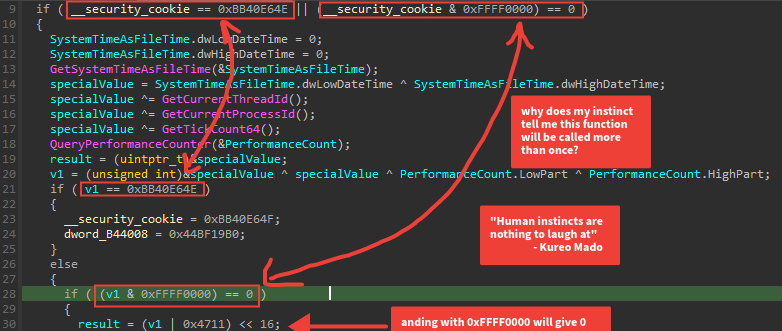

Notice the __security_cookie and v1 have same types of checks. I wonder if this is a replacement technique for the OpenMutexA(<mutex_name>) in previous challenge. Let’s check.
Yepp! Take a look at this code again try to compare the intentions with previous challenge (i.e if you have read my previous post, else just keep following)
uintptr_t mainfn1() {
uintptr_t result; // eax
unsigned int specialValue_1; // ecx
LARGE_INTEGER PerformanceCount; // [esp+0h] [ebp-14h] BYREF
struct _FILETIME SystemTimeAsFileTime; // [esp+8h] [ebp-Ch] BYREF
DWORD specialValue; // [esp+10h] [ebp-4h] BYREF
if (__security_cookie == 0xBB40E64E || (__security_cookie & 0xFFFF0000) == 0) {
SystemTimeAsFileTime.dwLowDateTime = 0;
SystemTimeAsFileTime.dwHighDateTime = 0;
GetSystemTimeAsFileTime( & SystemTimeAsFileTime);
specialValue = SystemTimeAsFileTime.dwLowDateTime ^ SystemTimeAsFileTime.dwHighDateTime;
specialValue ^= GetCurrentThreadId();
specialValue ^= GetCurrentProcessId();
specialValue ^= GetTickCount64();
QueryPerformanceCounter( & PerformanceCount);
result = (uintptr_t) & specialValue;
specialValue_1 = (unsigned int) & specialValue ^ specialValue ^ PerformanceCount.LowPart ^ PerformanceCount.HighPart;
if (specialValue_1 == 0xBB40E64E) {
__security_cookie = 0xBB40E64F;
negatedSpecialValue = 0x44BF19B0;
} else {
if ((specialValue_1 & 0xFFFF0000) == 0) {
result = (specialValue_1 | 0x4711) << 16;
specialValue_1 |= result;
}
__security_cookie = specialValue_1;
negatedSpecialValue = ~specialValue_1;
}
} else {
result = ~__security_cookie;
negatedSpecialValue = ~__security_cookie;
}
return result;
}
First this checks certain conditions on __security_cookie and if any one of those satisfy then it’ll generate a specialValue and modify the __security_cookie and generate a new negatedSpecialValue from the specialValue.

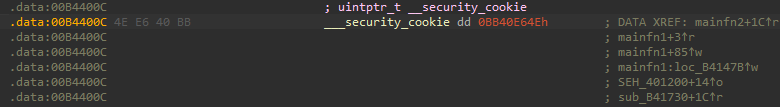

Intial value of __security_cookie
This is exactly same with the check value in first if case.
But since this is the __security_cookie (stack canary), we should probably check this dynamically.
We can place a breakpoint just at the first if statement and check the value in __security_cookie and no matter how many times you run, this value will keep changing again and again! This is what stack canary actually is! It is there to detect Stack Buffer Overflow attacks and it is set to some random value always.

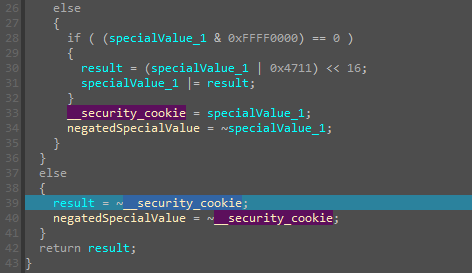

This makes the execution follow the else branch
I’ll now change the name of this mainfn1 to something more meaningful like
Now we analyze mainfn2
// positive sp value has been detected, the output may be wrong!
int __usercall mainfn2 @ < eax > (int a1 @ < esi > ) {
char v1; // bl
_DWORD * v3; // eax
void(__cdecl ** v4)(_DWORD, int, _DWORD); // esi
char v5; // [esp+10h] [ebp-24h]
if (!sub_B41640(1)) {
sub_B41880(7);
goto LABEL_16;
}
v1 = 0;
v5 = sub_B41600();
if (dword_B47270 == 1) {
LABEL_16: sub_B41880(7);
goto LABEL_17;
}
if (dword_B47270) {
v1 = 1;
} else {
dword_B47270 = 1;
if (initterm_e((_PIFV * ) & First, (_PIFV * ) & Last))
return 255;

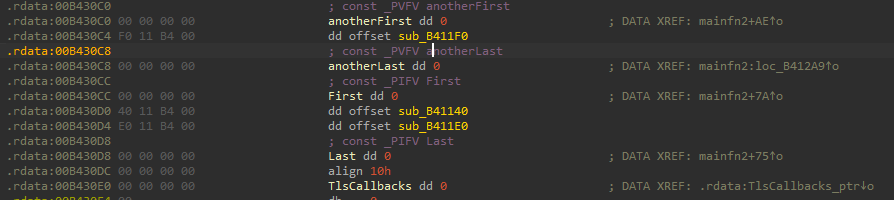

initterm((_PVFV * ) & dword_B430C0, (_PVFV * ) & dword_B430C8);
dword_B47270 = 2;
}
sub_B41810(v5);
v3 = (_DWORD * ) sub_B41870();
v4 = (void(__cdecl ** )(_DWORD, int, _DWORD)) v3;
if ( * v3 && (unsigned __int8) sub_B41730(v3))
( * v4)(0, 2, 0);
a1 = ((int(__cdecl * )(int, char ** , char ** )) sub_B410AD)(_argc, _argv, environ);
if (!(unsigned __int8) sub_B41A20())
LABEL_17:
exit(a1);
if (!v1)
cexit();
sub_B41830(1, 0);
return a1;
}
Lot’s of function calls! 9 unique fn calls in total!

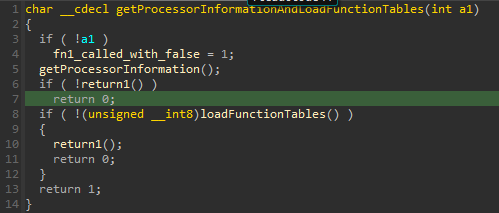

Decompilation for fn1 is
char __cdecl fn1(int a1) {
if (!a1)
fn1_called_with_false = 1;
fn10();
if (!(unsigned __int8) fn12())
return 0;
if (!(unsigned __int8) fn13()) {
fn12();
return 0;
}
return 1;
}
Let’s check this one by one.
fn10 :
int fn10() {
int v5; // edi
int v11; // eax
int v12; // edi
int v18; // eax
int v19; // eax
int v20; // eax
int v22; // [esp+0h] [ebp-24h]
char v23; // [esp+10h] [ebp-14h]
int v24; // [esp+18h] [ebp-Ch]
int v25; // [esp+1Ch] [ebp-8h]
int v26; // [esp+20h] [ebp-4h]
int v27; // [esp+20h] [ebp-4h]
dword_B47330 = 0;
dword_B44010 |= 1 u;
if (IsProcessorFeaturePresent(PF_XMMI64_INSTRUCTIONS_AVAILABLE)) {
_EAX = 0;
__asm {
cpuid
}
v24 = _EAX;
v5 = _ECX ^ 0x6C65746E;
v25 = _EDX ^ 0x49656E69;
v26 = _EBX ^ 0x756E6547;
_EAX = 1;
__asm {
cpuid
}
v22 = _EAX;
if (!(v25 | v5 | v26) &&
((v11 = _EAX & 0xFFF3FF0, (v22 & 0xFFF3FF0) == 67264) ||
v11 == 132704 ||
v11 == 132720 ||
v11 == 198224 ||
v11 == 198240 ||
v11 == 198256)) {
v12 = dword_B47334 | 1;
dword_B47334 |= 1 u;
} else {
v12 = dword_B47334;
}
_EAX = 7;
v27 = _ECX;
if (v24 < 7) {
_EBX = 0;
} else {
__asm {
cpuid
}
_ECX = v27;
if ((_EBX & 0x200) != 0)
dword_B47334 = v12 | 2;
}
v18 = dword_B44010 | 2;
dword_B47330 = 1;
dword_B44010 |= 2 u;
if ((_ECX & 0x100000) != 0) {
v19 = v18 | 4;
dword_B47330 = 2;
dword_B44010 = v19;
if ((_ECX & 0x8000000) != 0 && (_ECX & 0x10000000) != 0) {
__asm {
xgetbv
}
v23 = v19;
if ((v19 & 6) == 6) {
v20 = dword_B44010 | 8;
dword_B47330 = 3;
dword_B44010 |= 8 u;
if ((_EBX & 0x20) != 0) {
dword_B47330 = 5;
dword_B44010 = v20 | 0x20;
if ((_EBX & 0xD0030000) == -805109760 && (v23 & 0xE0) == 224) {
dword_B44010 |= 0x40 u;
dword_B47330 = 6;
}
}
}
}
}
}
return 0;
}
Hmm… This looks like some type of Anti-VM, but the program was running normally (or maybe not). If you have Virtualization turned on using KVM (say), then cpuid will return KVMKVMKVM in ebx, ecx and edx. What it might also be doing is using these values to do some comparision or something. So that it seems like the program is running just fine but even if you enter the correct password it’ll consider that as wrong. I encountered this program in one of the ReverseMe3 or ReverseMe4 crackmes from crackes[.]one. This is relatively easy to defeat (given that’s what is going on here).

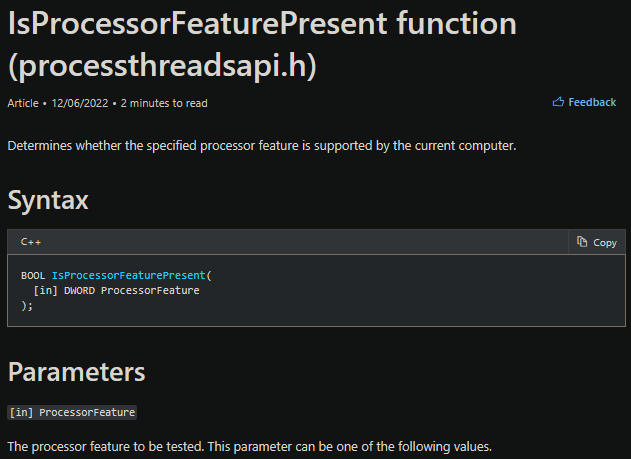

So it’s checking whether XMM instructions are supported or not. Meaning can we use XMM registers in our normal mov, cmp etc instructions.

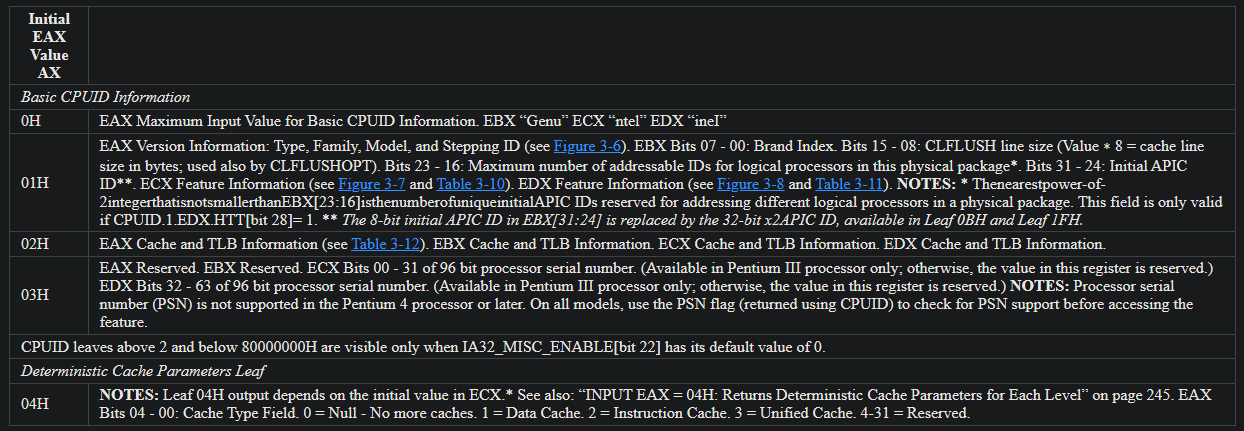

Images are take from Felix Cloutier’s Website

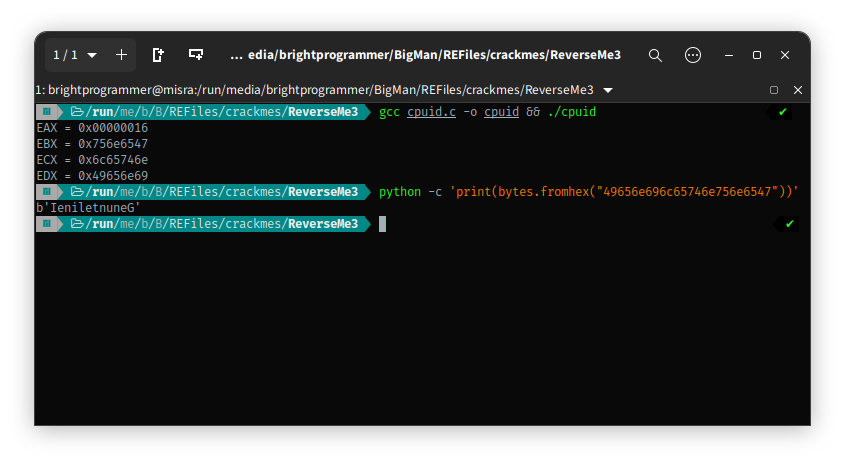

You can see here tha when eax is 0 and cpuid is executed, we’ll get the so called Vendor Information String.

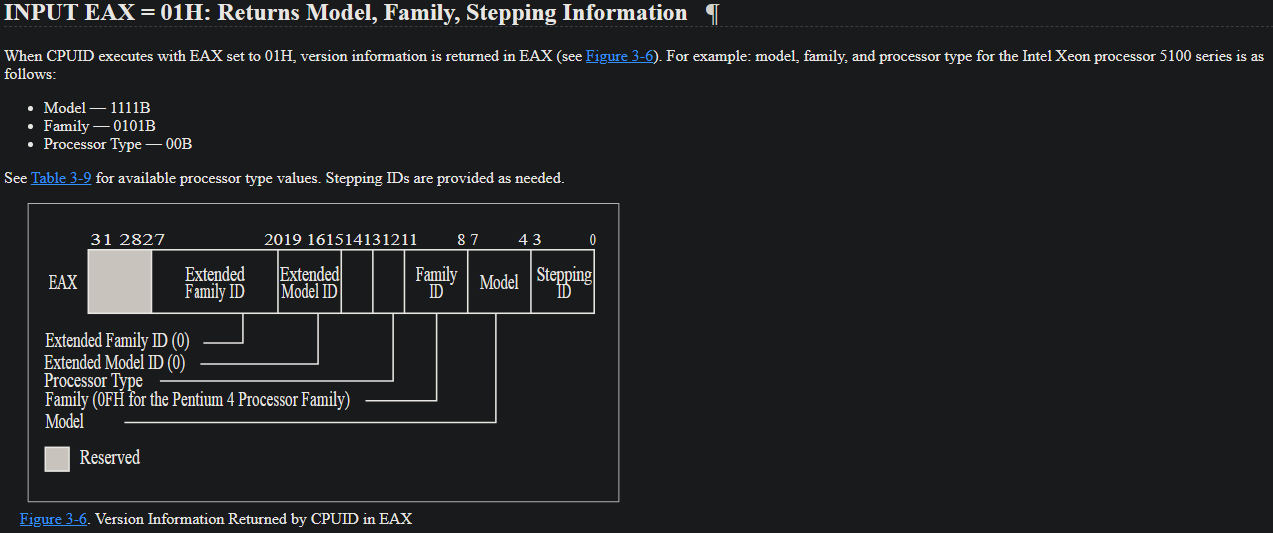

When eax is 1, cpuid will return many things…
The upper nibble is reserved so we don’t check that. If we try to understand each field on our own then it’ll be quite difficult, so let’s take help of the binary that we are analyzing. It’s doing some operations on the value returned in eax, ebx, ecx and edx registers from the eax = 0x1 leaf in cpuid.
The meaning of ExtendedFamilyID and ExtenedModelID can be understood from the code given below (sometimes reading code is much faster than reading text 😇 :
// ExtendedFamilyID is used only when FamilyID is 0xF (only one nibble)
if (FamilyID != 0xF) {
DisplayFamilyID = FamilyID;
} else {
DisplayFamilyID = (ExtendedFamilyID << 4) | FamilyID;
}
// ExtendedModelID is used only when FamilyID is 0x6 or 0xF
if (FamilyID == 0x6 || FamilyID == 0xF) {
DisplayModelID = (ExtendedModelID << 4) | ModelID;
} else {
DisplayModelID = ModelID;
}

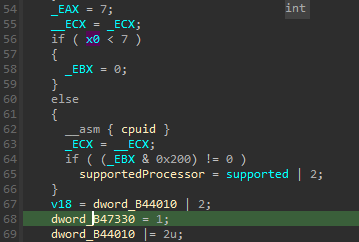

Now back to the code :

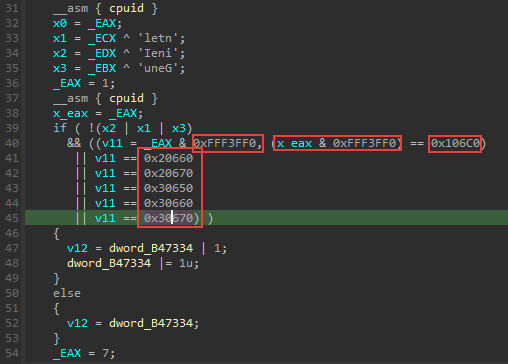

We see here that the program is taking bitwise and of _EAX register value and 0x0FFF3FF0. You see the upper nibble here is left out (because it’s reserved). Next it’s also leaving out the SteppingID. What’s being compared are the ModelID which is checked against 0xC, 0x5, 0x6 or 0x7, FamilyID is always 6 (meaning use of ExtendedModelID), ProcessorType is being neglected and finally ExtendedModelID is compared against 0x1, 0x2 or 0x3. Note that ExtendedFamilyID is also left out.
All in all, we can just rename that dword_B47334 to supportedProcessor for now.

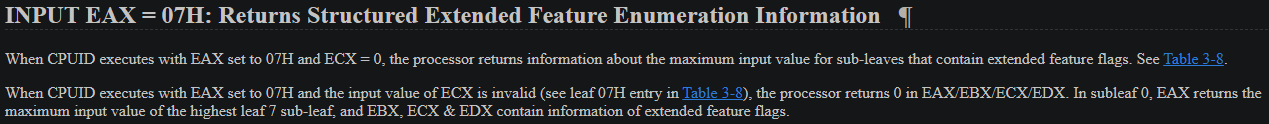

x0 is the value of eax returned when cpuid was called with eax=0. This is the highest value you can set to eax and execute cpuid to get some cpu information. For eax=0x7, we have information about the highest value of ebx to get subleaf information from cpuid.
If we keep on analyzing like this then it might take a long time… So we’ll just name all these dword_xxxxx values to something that we can indentify in future. For now I’ll name these as procInfo[0-9+] after which the code looks like this :
int getProcessorInformation() {
int x1; // edi
int v11; // eax
int supported; // edi
int v18; // eax
int v19; // eax
int v20; // eax
int x_eax; // [esp+0h] [ebp-24h]
char v23; // [esp+10h] [ebp-14h]
int x0; // [esp+18h] [ebp-Ch]
int x2; // [esp+1Ch] [ebp-8h]
int x3; // [esp+20h] [ebp-4h]
int __ECX; // [esp+20h] [ebp-4h]
procInfo2 = 0;
procInfo1 |= 1 u;
if (IsProcessorFeaturePresent(PF_XMMI64_INSTRUCTIONS_AVAILABLE)) {
_EAX = 0;
__asm {
cpuid
}
x0 = _EAX;
x1 = _ECX ^ 'letn';
x2 = _EDX ^ 'Ieni';
x3 = _EBX ^ 'uneG';
_EAX = 1;
__asm {
cpuid
}
x_eax = _EAX;
if (!(x2 | x1 | x3) &&
((v11 = _EAX & 0xFFF3FF0, (x_eax & 0xFFF3FF0) == 0x106C0) ||
v11 == 0x20660 ||
v11 == 0x20670 ||
v11 == 0x30650 ||
v11 == 0x30660 ||
v11 == 0x30670)) {
supported = supportedProcessor | 1;
supportedProcessor |= 1 u;
} else {
supported = supportedProcessor;
}
_EAX = 7;
__ECX = _ECX;
if (x0 < 7) {
_EBX = 0;
} else {
__asm {
cpuid
}
_ECX = __ECX;
if ((_EBX & 0x200) != 0)
supportedProcessor = supported | 2;
}
v18 = procInfo1 | 2;
procInfo2 = 1;
procInfo1 |= 2 u;
if ((_ECX & 0x100000) != 0) {
v19 = v18 | 4;
procInfo2 = 2;
procInfo1 = v19;
if ((_ECX & 0x8000000) != 0 && (_ECX & 0x10000000) != 0) {
__asm {
xgetbv
}
v23 = v19;
if ((v19 & 6) == 6) {
v20 = procInfo1 | 8;
procInfo2 = 3;
procInfo1 |= 8 u;
if ((_EBX & 0x20) != 0) {
procInfo2 = 5;
procInfo1 = v20 | 0x20;
if ((_EBX & 0xD0030000) == 0xD0030000 && (v23 & 0xE0) == 0xE0) {
procInfo1 |= 0x40 u;
procInfo2 = 6;
}
}
}
}
}
}
return 0;
}
Next we analyze fn13
The off_B340FC variable stores offset to some other function :
I renamed the function to something more meaningful.
char loadSomeFunctionAddresses()
{
HMODULE ModuleHandleW; // eax
FARPROC RtlWow64EnableFsRedirectionEx; // edi
HMODULE v2; // eax
char result; // al
ModuleHandleW = GetModuleHandleW(L"kernel32");
if ( ModuleHandleW )
is_fnAddDllDirectory_present = GetProcAddress(ModuleHandleW, "AddDllDirectory") != 0;
RtlWow64EnableFsRedirectionEx = 0;
v2 = GetModuleHandleW(L"ntdll");
if ( v2 )
RtlWow64EnableFsRedirectionEx = GetProcAddress(v2, "RtlWow64EnableFsRedirectionEx");
sec_cookie4 = __security_cookie;
sec_cookie3 = __security_cookie;
sec_cookie2 = __security_cookie;
result = 1;
sec_cookie1 = __security_cookie;
RtlWow64EnableFsRedirectionEx_xorred_with__security_cookie = __security_cookie ^ __ROR4__(
RtlWow64EnableFsRedirectionEx,
32 - (__security_cookie & 0x1F));
return result;
}
Second argument to fn13 is just 0 initially.
After analyzing this function fn13 more for a while I realize that it might be dealing with some type of function table :
because the executeFunctionsInFnTable function looks like this :
char __cdecl executeFunctionsInFnTable(unsigned __int8( ** fnTableStart)(void), unsigned __int8( ** fnTableEnd)(void)) {
unsigned __int8( ** pfnIter)(void); // esi
unsigned __int8( ** iter)(void); // esi
int v5; // [esp+0h] [ebp-Ch]
if (fnTableStart == fnTableEnd)
return 1;
pfnIter = fnTableStart;
while (! * pfnIter || ((unsigned __int8(__cdecl * )(int)) * pfnIter)(v5)) // while value at pfnIter DWORD is 0 or the value returned after calling pfnIter is true.
// Note that if (!*pfnIter) is true then pfnIter won't be called so there is no issue with calling nullptr
{
pfnIter += 2; // skipping two functions at a time
if (pfnIter == fnTableEnd) // when reach end of table then return 1
return 1;
}
if (pfnIter != fnTableStart) {
iter = pfnIter - 1;
do {
if ( * (iter - 1)) // if value at (iter-1) is not 0, i.e DWORD just before iter
{
if ( * iter) // if iter itself does not point to a zero value
((void(__cdecl * )(_DWORD)) * iter)(0); // call iter
}
iter -= 2;
}
while (iter + 1 != fnTableStart);
}
return 0;
}

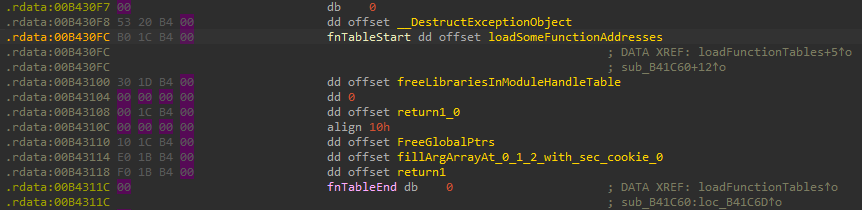

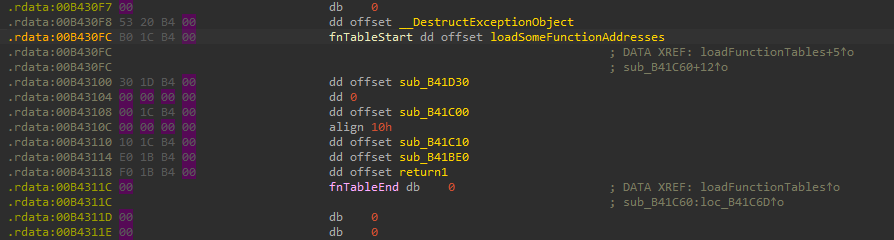

I’d now like to analyze this function table.

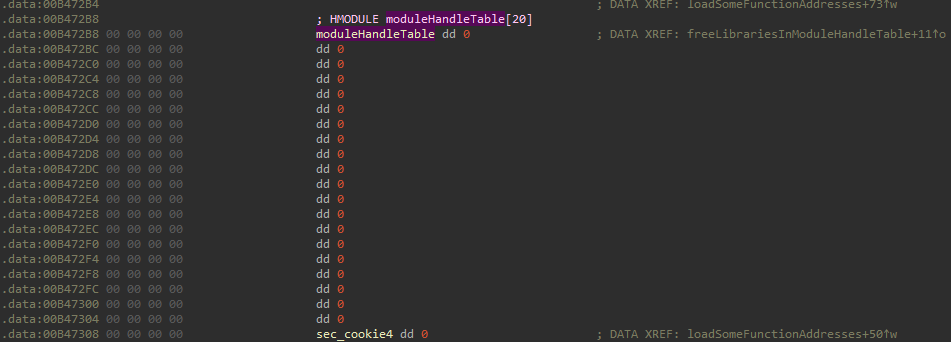

The first function sub_B41D30 looks like this :
char __cdecl freeLibrariesInModuleHandleTable(char a1)
{
HMODULE *moduleIter; // esi
if ( !a1 )
{
moduleIter = &moduleHandleTable;
do
{
if ( *moduleIter )
{
if ( *moduleIter != (HMODULE)-1 )
FreeLibrary(*moduleIter);
*moduleIter = 0;
}
++moduleIter;
}
while ( moduleIter != (HMODULE *)&sec_cookie4 );
}
return 1;
}
change the type of moduleHandleTable to HANDLE* or a HANDLE array.
The next function in function table just calls return1 with argument 0 and then returns.
Third function frees two pointers.
I’ll rename Block and dword_B4731C to GlobalPtr1 and GlobalPtr2 because it makes more sense here. It might be possible that something is allocated and pointer is stored in these GlobalPtrX variables and this function just calls free on those two.
Second last function is :
The function table now looks like this :
and fn1 now looks like this :
After sifting through other functions I found this fn7 function quite interesting…
int fn7()
{
_WORD *v0; // eax
_WORD *v1; // esi
v0 = VirtualAlloc(0, 0x20000u, 0x1000u, 4u);
v1 = v0;
lpAddress = v0;
if ( v0 )
{
memcpy(v0 + 300, &unk_B44018, 0x3246u);
*v1 = 300;
if ( !(unsigned __int8)sub_B41000() )
printf("Failed to run program\n");
if ( lpAddress )
{
VirtualFree(lpAddress, 0, 0x8000u);
lpAddress = 0;
}
}
else
{
printf("Failed to init program\n");
}
return 0;
}
It looks like this is the actual program we should be reversing… Why? well because of two things :
- Before I modified the
fn7function signature, there wereargc,argvandenvironvariables present as argument, which is generally the signature ofmainin C/C++ programs. - While having general talk with Elvis and giving him this writeup link to read as I progress through the challenge, he pointed out that the code I’m reversing at the moment is compiler generated code and not the actual program code that he wrote and if we take a look at the big picture, it actually makes sense! Checking for XMM register support? Loading function tables? Freeing module handles at the very beginning? All this looks like some boilerplate code. If not the first and last, atleast loading function table looks like the boilerplate code!
But I want to reverse this chall completely on my own so I’ll assume that I know nothing and resume with analyzing other functions too. Who knows? it might pay well in other challenges because I’ll be able to recognize this code! Also, he said that this challenge can be solved in much simpler way because he thought the challenge will be too hard and thus he added a shortcut to solve it. But I haven’t even started reversing the actual chall yet so how would I know 🤣 I’m super N00B!
Time to analyze fn2
LONG __usercall fn2 @ < eax > (int a1 @ < ebx > , int a2 @ < edi > , int a3 @ < esi > , unsigned int a4) {
void * v4; // eax
int v5; // ecx
int v6; // edx
unsigned int v7; // kr00_4
BOOL v8; // eax
bool v9; // bl
LONG result; // eax
int v11[179]; // [esp+4h] [ebp-324h] BYREF
int v12[20]; // [esp+2D0h] [ebp-58h] BYREF
struct _EXCEPTION_POINTERS ExceptionInfo; // [esp+320h] [ebp-8h] BYREF
int savedregs; // [esp+328h] [ebp+0h]
int retaddr; // [esp+32Ch] [ebp+4h] BYREF
if (IsProcessorFeaturePresent(0x17 u))
__fastfail(a4);
sub_B41AE0(3);
v4 = memset(v11, 0, sizeof(v11));
v11[44] = (int) v4;
v11[43] = v5;
v11[42] = v6;
v11[41] = a1;
v11[40] = a3;
v11[39] = a2;
LOWORD(v11[50]) = __SS__;
LOWORD(v11[47]) = __CS__;
LOWORD(v11[38]) = __DS__;
LOWORD(v11[37]) = __ES__;
LOWORD(v11[36]) = __FS__;
LOWORD(v11[35]) = __GS__;
v7 = __readeflags();
v11[48] = v7;
v11[46] = retaddr;
v11[49] = (int) & retaddr;
v11[0] = 65537;
v11[45] = savedregs;
v12[2] = 0;
memset( & v12[4], 0, 64);
v12[0] = 1073741845;
v12[1] = 1;
v12[3] = retaddr;
v8 = IsDebuggerPresent();
ExceptionInfo.ExceptionRecord = (PEXCEPTION_RECORD) v12;
v9 = v8;
ExceptionInfo.ContextRecord = (PCONTEXT) v11;
SetUnhandledExceptionFilter(0);
result = UnhandledExceptionFilter( & ExceptionInfo);
if (!result && !v9)
return sub_B41AE0(3);
return result;
}

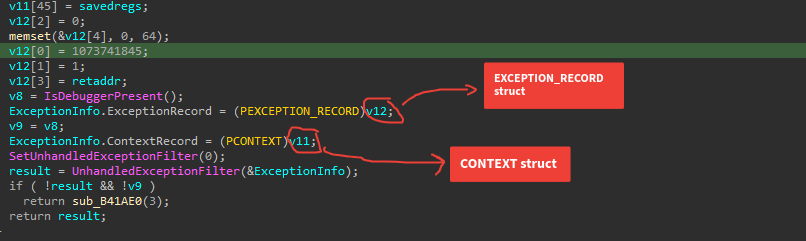

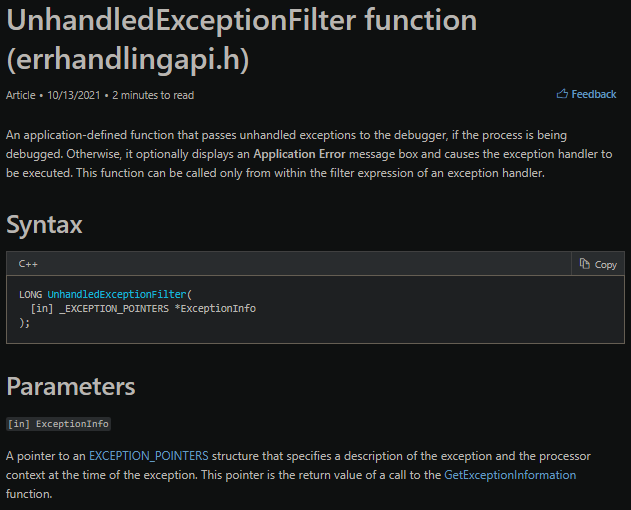

This looks hard to read for now… but after analyzing this, things make more sense :
void __usercall fn2(DWORD _EBX @ < ebx > , DWORD _EDI @ < edi > , DWORD _ESI @ < esi > , unsigned int fastfail_errcode) {
void * _EAX; // eax
DWORD _ECX; // ecx
DWORD _EDX; // edx
DWORD v7; // kr00_4
BOOL isDebuggerPresent; // eax
bool _isDebuggerPresent; // bl
CONTEXT context; // [esp+4h] [ebp-324h] BYREF
EXCEPTION_RECORD exceptionRecord; // [esp+2D0h] [ebp-58h] BYREF
struct _EXCEPTION_POINTERS ExceptionInfo; // [esp+320h] [ebp-8h] BYREF
DWORD savedregs; // [esp+328h] [ebp+0h]
void * retaddr; // [esp+32Ch] [ebp+4h] BYREF
if (IsProcessorFeaturePresent(PF_FASTFAIL_AVAILABLE))
__fastfail(fastfail_errcode);
setDebuggerNotPresent();
_EAX = memset( & context, 0, sizeof(context));
context.Eax = (DWORD) _EAX;
context.Ecx = _ECX;
context.Edx = _EDX;
context.Ebx = _EBX;
context.Esi = _ESI;
context.Edi = _EDI;
LOWORD(context.SegSs) = __SS__;
LOWORD(context.SegCs) = __CS__;
LOWORD(context.SegDs) = __DS__;
LOWORD(context.SegEs) = __ES__;
LOWORD(context.SegFs) = __FS__;
LOWORD(context.SegGs) = __GS__;
v7 = __readeflags();
context.EFlags = v7;
context.Eip = (DWORD) retaddr;
context.Esp = (DWORD) & retaddr;
context.ContextFlags = 0x10001; // CONTEXT_CONTROL
context.Ebp = savedregs;
exceptionRecord.ExceptionRecord = 0;
memset( & exceptionRecord.NumberParameters, 0, 64);
exceptionRecord.ExceptionCode = 0x40000015;
exceptionRecord.ExceptionFlags = 1;
exceptionRecord.ExceptionAddress = retaddr;
isDebuggerPresent = IsDebuggerPresent();
ExceptionInfo.ExceptionRecord = & exceptionRecord;
_isDebuggerPresent = isDebuggerPresent;
ExceptionInfo.ContextRecord = & context;
SetUnhandledExceptionFilter(0);

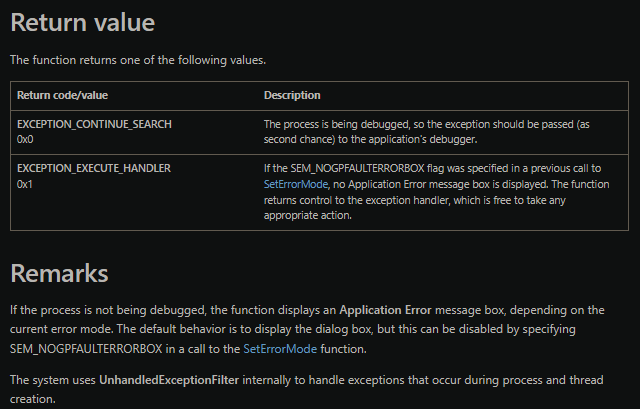

if (!UnhandledExceptionFilter( & ExceptionInfo) && !_isDebuggerPresent) // if EXCEPTION_CONTINUE_SEARCH is returned and a debugger is not present
setDebuggerNotPresent();
}
The value of ContextFlags can be retrieved from ReactOS souce code :

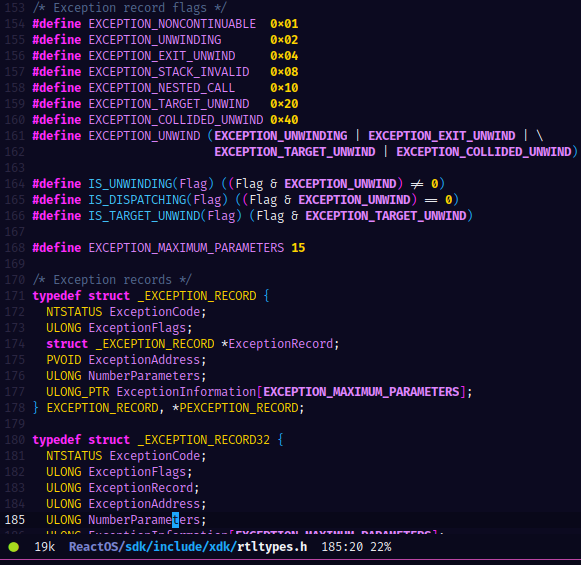

and value of enums in EXCEPTION_RECORD struct can also be found from the same, for eg: ExceptionFlags :
But analyzing things like this doesn’t seem much productive so let’s move on further and we will come back if we feel like we missed some part. (I just wanted to show off my editor 😜). I’ll rename this one to pingDebuggerAboutProblem btw.

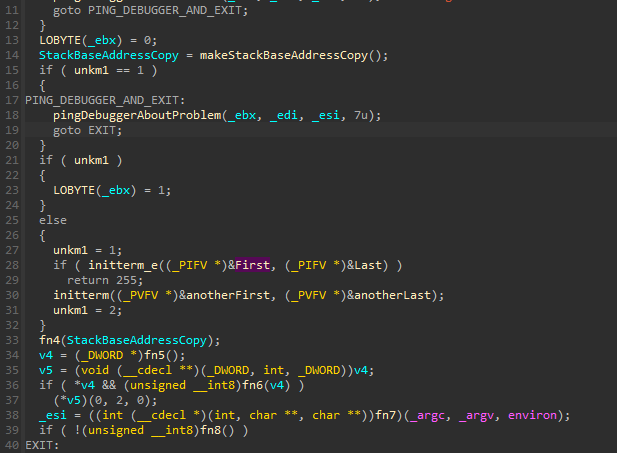

Things start to make more sense now :
Now we move on to fn3
char fn3() {
PVOID StackBase; // edx
signed __int32 ret; // eax
if (!checkStackBaseCopied())
return 0;
StackBase = NtCurrentTeb() -> NtTib.StackBase;
ret = _InterlockedCompareExchange( & stackBase, (signed __int32) StackBase, 0);
if (!ret)
return 0;
while (StackBase != (PVOID) ret) // make sure the exchange occured
{
ret = _InterlockedCompareExchange( & stackBase, (signed __int32) StackBase, 0);
if (!ret)
return 0;
}
return 1;
}
This code is quite simple and clear. I’ll rename fn3 to makeStackBaseAddressCopy.
Moving on, let’s not focus on unkm1 for now and foucs on fn4 and this initterm

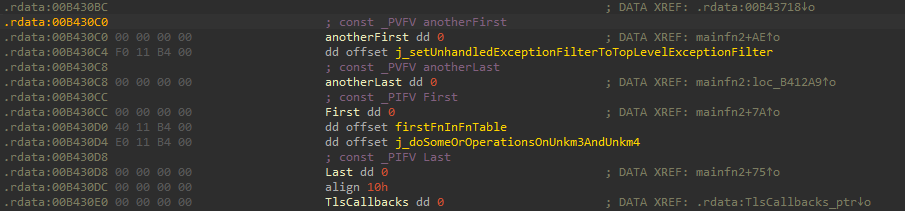

We’ll have to check these function tables now.
The very first function seem to be setting unexpected exception filter to TopLevelExceptionFilter.
LONG __stdcall TopLevelExceptionFilter(struct _EXCEPTION_POINTERS * ExceptionInfo) {
PEXCEPTION_RECORD ExceptionRecord; // esi
ULONG_PTR v2; // eax
PCONTEXT ContextRecord; // esi
ExceptionRecord = ExceptionInfo -> ExceptionRecord;
if (ExceptionInfo -> ExceptionRecord -> ExceptionCode == 0xE06D7363 && ExceptionRecord -> NumberParameters == 3) {
v2 = ExceptionRecord -> ExceptionInformation[0];
if (v2 == 0x19930520 || v2 == 0x19930521 || v2 == 0x19930522 || v2 == 0x1994000) {
*(_DWORD * ) sub_B41B00() = ExceptionRecord;
ContextRecord = ExceptionInfo -> ContextRecord;
*(_DWORD * ) sub_B41B10() = ContextRecord;
terminate();
}
}
return 0;
}
Again I guess we don’t need to analyze this as we know that this can’t be the actual code. In static analysis I guess we don’t care much about exception handlers and all (given they look clean).
// 2nd function in table
int sub_B411E0() {
doSomeOrOperationsOnUnkm3AndUnkm4();
return 0;
}
char * doSomeOrOperationsOnUnkm1AndUnkm2() {
_DWORD * Unkm3Addr; // eax
int v1; // ecx
char * result; // eax
int v3; // ecx
Unkm3Addr = getUnkm3Addr();
v1 = Unkm3Addr[1];
* Unkm3Addr |= 0x24 u;
Unkm3Addr[1] = v1;
result = getUnkm4Addr();
v3 = * ((_DWORD * ) result + 1);
*(_DWORD * ) result |= 2 u;
*((_DWORD * ) result + 1) = v3;
return result;
}

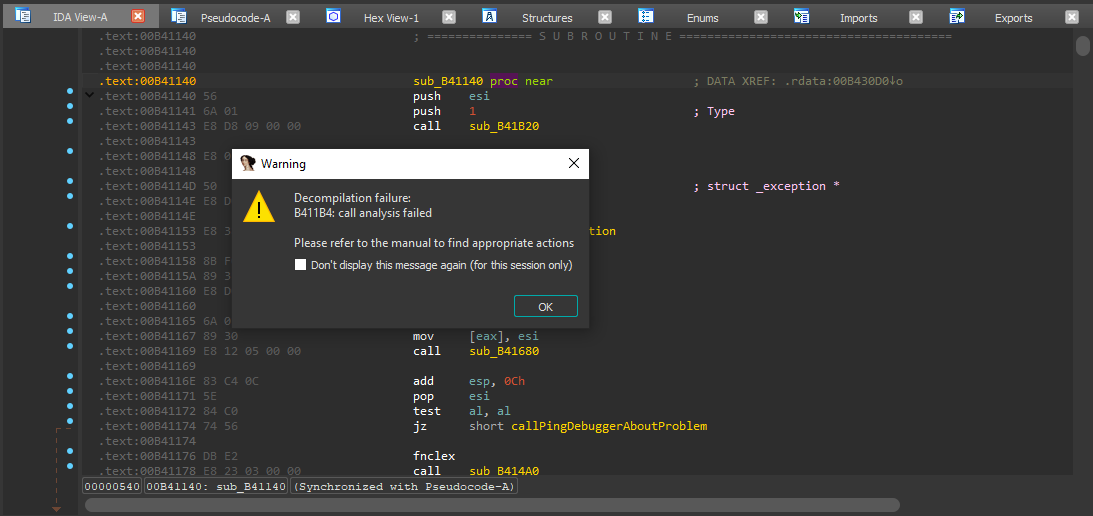

I’m getting decompilation failue for first function in function table
but the disassembly is small so we can just read and understand but again as I seem to reversing these functions more and more (after taking a look at fn7, I feel I should skip these functions for now. I guess this might also be because Elvis pointed out that I’m reversing compiler bootstrap code)
.text:00B41140 firstFnInFnTable proc near ; DATA XREF: .rdata:00B430D0↓o
.text:00B41140 56 push esi
.text:00B41141 6A 01 push 1 ; Type
.text:00B41143 E8 D8 09 00 00 call sub_B41B20
.text:00B41143
.text:00B41148 E8 03 04 00 00 call sub_B41550
.text:00B41148
.text:00B4114D 50 push eax ; struct _exception *
.text:00B4114E E8 D0 0E 00 00 call _set_fmode
.text:00B4114E
.text:00B41153 E8 38 03 00 00 call UserMathErrorFunction
.text:00B41153
.text:00B41158 8B F0 mov esi, eax
.text:00B4115A 89 35 60 72 B4 00 mov dword_B47260, esi
.text:00B41160 E8 D0 0E 00 00 call __p__commode
.text:00B41160
.text:00B41165 6A 01 push 1
.text:00B41167 89 30 mov [eax], esi
.text:00B41169 E8 12 05 00 00 call sub_B41680
.text:00B41169
.text:00B4116E 83 C4 0C add esp, 0Ch
.text:00B41171 5E pop esi
.text:00B41172 84 C0 test al, al
.text:00B41174 74 56 jz short callPingDebuggerAboutProblem
.text:00B41174
.text:00B41176 DB E2 fnclex
.text:00B41178 E8 23 03 00 00 call sub_B414A0
.text:00B41178
.text:00B4117D 50 push eax
.text:00B4117E E8 2D 03 00 00 call sub_B414B0
.text:00B4117E
.text:00B41183 83 C4 04 add esp, 4
.text:00B41186 85 C0 test eax, eax
.text:00B41188 75 42 jnz short callPingDebuggerAboutProblem
.text:00B41188
.text:00B4118A E8 D1 03 00 00 call sub_B41560
.text:00B4118A
.text:00B4118F E8 CC 06 00 00 call sub_B41860
.text:00B4118F
.text:00B41194 85 C0 test eax, eax
.text:00B41196 74 0D jz short loc_B411A5
.text:00B41196
.text:00B41198 68 90 14 B4 00 push offset UserMathErrorFunction ; UserMathErrorFunction
.text:00B4119D E8 63 0E 00 00 call __setusermatherr
.text:00B4119D
.text:00B411A2 83 C4 04 add esp, 4
.text:00B411A2
.text:00B411A5
.text:00B411A5 loc_B411A5: ; CODE XREF: firstFnInFnTable+56↑j
.text:00B411A5 E8 F6 03 00 00 call nullsub_1
.text:00B411A5
.text:00B411AA E8 F1 03 00 00 call nullsub_1
.text:00B411AA
.text:00B411AF E8 BC 03 00 00 call sub_B41570
.text:00B411AF
.text:00B411B4 E8 D7 02 00 00 call UserMathErrorFunction
.text:00B411B4
.text:00B411B9 50 push eax
.text:00B411BA E8 81 09 00 00 call sub_B41B40
.text:00B411BA
.text:00B411BF 83 C4 04 add esp, 4
.text:00B411C2 E8 49 08 00 00 call j_UserMathErrorFunction
.text:00B411C2
.text:00B411C7 85 C0 test eax, eax
.text:00B411C9 75 01 jnz short callPingDebuggerAboutProblem
.text:00B411C9
.text:00B411CB C3 retn
.text:00B411CB
.text:00B411CC ; ---------------------------------------------------------------------------
.text:00B411CC
.text:00B411CC callPingDebuggerAboutProblem: ; CODE XREF: firstFnInFnTable+34↑j
.text:00B411CC ; firstFnInFnTable+48↑j
.text:00B411CC ; firstFnInFnTable+89↑j
.text:00B411CC 6A 07 push 7
.text:00B411CE E8 AD 06 00 00 call pingDebuggerAboutProblem
.text:00B411CE
.text:00B411CE firstFnInFnTable endp
.text:00B411CE
.text:00B411CE ; ---------------------------------------------------------------------------
.text:00B411D3 CC CC CC CC CC CC CC CC CC CC+align 10h
What I can do for now is change the name to something that I can remember for future purpose. I’ll change it’s name to firstFnInFnTable. The basic goal now is to skip any function that’s taking time to reverse as in real life scenarios we have to reverse programs as fast as possible. If we get basic insight on what a function might do then we just skip it by adding some recognizable name to it.
Next, fn4 is checking for stack base address again
__int32 __cdecl fn4(char a1) {
__int32 result; // eax
result = checkStackBaseCopied();
if (result) {
if (!a1)
return _InterlockedExchange( & stackBase, 0);
}
return result;
}
fn5 is getting address of a memory region that I now named unkm5
void *getUnkm5Addr() {
return &unkm5;
}

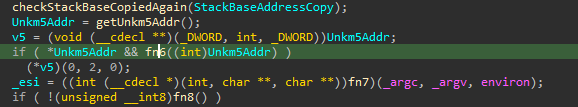

This code now seems strange :
Unkm5 is a function?
Also, fn6 is checking some PE file signatures…
bool __cdecl fn6(int a1) {
int v1; // eax
bool result; // al
result = 0;
if (MEMORY[0xB40000] == 'ZM' &&
* (_DWORD * )(MEMORY[0xB4003C] + 0xB40000) == 'EP' &&
* (_WORD * )(MEMORY[0xB4003C] + 0xB40018) == 0x10B) {
v1 = sub_B415B0(0xB40000, a1 - 11796480);
if (v1) {
if ( * (int * )(v1 + 36) >= 0)
return 1;
}
}
return result;
}
Skip this too for now…
Now finally we reach to fn7

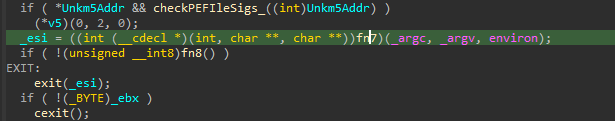

Notice that argc, argv and environ part I was telling about? Now I guess in future I won’t be fooled by compiler code and actual code. I hope so!
int fn7() {
_WORD * v0; // eax
_WORD * v1; // esi
v0 = VirtualAlloc(0, 0x20000 u, MEM_COMMIT, PAGE_READ_WRITE);
v1 = v0;
lpAddress = v0;
if (v0) {
memcpy(v0 + 300, & unk_B44018, 0x3246 u);
* v1 = 300;
if (!(unsigned __int8) sub_B41000())
printf("Failed to run program\n");
if (lpAddress) {
VirtualFree(lpAddress, 0, 0x8000 u);
lpAddress = 0;
}
} else {
printf("Failed to init program\n");
}
return 0;
}

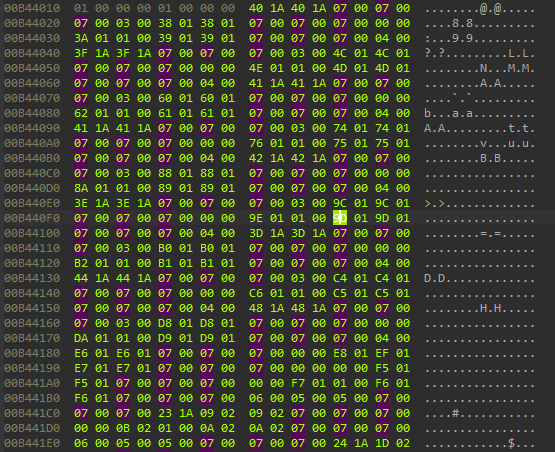

This sub_B41000 looks like a VM. Why? Take a look at this memory that it’s copying to newly allocated area :
The entropy of this region seems to be low. You can see lot’s of similar bytes. This means they can be VM bytecodes.

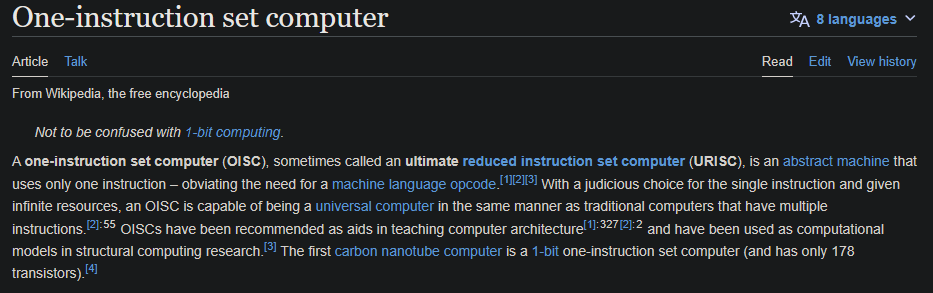

Well at first sight one might not guess it as a VM (especially when you don’t have information that it’s an OISC) but if you look at it’s code :
int sub_B41000() {
unsigned __int16 * v0; // ebx
int result; // eax
int v2; // edx
int v3; // ecx
int v4; // esi
int v5; // edi
v0 = (unsigned __int16 * ) lpAddress;
for (result = 1;* v0 != 0xFFFF; result = 1) {
if (v0[4] == 1) {
v0[4] = 0;
printf("%c", v0[3]);
v0 = (unsigned __int16 * ) lpAddress;
}
if (v0[6] == 1) {
v0[6] = 0;
scanf("%c", v0 + 5);
v0 = (unsigned __int16 * ) lpAddress;
}
v2 = * v0;
v3 = v0[v2 + 1];
v4 = v0[v2];
v5 = v0[v2 + 2];
* v0 = v2 + 3;
LOWORD(v3) = ~(v0[v4] | v0[v3]);
v0[v5] = v3;
v0[1] = __ROL2__(v3, 1);
}
return result;
}
Take a look at that for loop, it’s quite strange. Looks like it’ll keep running until this v0 won’t reach a certain value! Now I admit, it would have been impossible to detect this without that huge hint but who knows, I might be wrong. One more thing about this is that when v0[4] is 1, it’ll call printf and scanf when v0[6] is 1. This looks like syscalls for input/output operations in the VM.
I also suspect that this v0 might be the pc of this VM.
Moment of Truth
To be honest, I never came across reversing an OISC VM. So, it’s time to study about these types of VM.
So, after going through some resources, I have some basic knowledge of how OISC computers work. This one is a nor computer. It’ll take two values, nor them and store it to some other place (can be confirmed from code above). There are two syscalls (kindof) available to read and write values character by character. I wrote a python script to simulate this VM :
#!/usr/bin/env python3
# rotate n by d bits
def rol(n, d):
return (n << d) | (n >> (16 - d))
# read all binary file data to bindata
f = open("MagicBox_Challenge.exe", 'rb')
binData = f.read()
f.close()
vmCodeOffset = 0x2618
vmCodeSize = 0x3246
vmCode = []
for i in range(300):
vmCode.append(0)
vmCode[0] = 300
for i in range(int(vmCodeSize/2)):
vmCode.append(int.from_bytes(binData[vmCodeOffset+2*i:vmCodeOffset+2*i+2], 'little'))
for i in range(0x2000):
vmCode.append(0)
while vmCode[0] != 0xffff:
print(f'{hex(vmCode[0])}({vmCode[0]}) -\t\t {hex(vmCode[vmCode[0]])} {hex(vmCode[vmCode[0]+1])} {hex(vmCode[vmCode[0]+2])} -\t\t', end = '')
if vmCode[4] == 1:
vmCode[4] = 0
print(chr(vmCode[3]))
if vmCode[6] == 1:
vmCode[6] = 0
vmCode[5] = ord(input('Enter Character : ')[0])
v = vmCode[0]
arg0 = vmCode[v]
arg1 = vmCode[v+1]
arg2 = vmCode[v+2]
vmCode[0] = v+3
vmCode[arg2] = ~(vmCode[arg0] | vmCode[arg1])
print(f'nor {hex(arg2)}, {hex(vmCode[arg0])}, {hex(vmCode[arg1])} || \t\t [{hex(arg2)}] = {hex(vmCode[arg2])}, [{hex(arg0)}], [{hex(arg1)}]')
vmCode[1] = rol(vmCode[arg2], 1)
# print(f'mov [0x1], rol({hex(vmCode[arg2])}, 1) = {hex(vmCode[0+1])}\n')

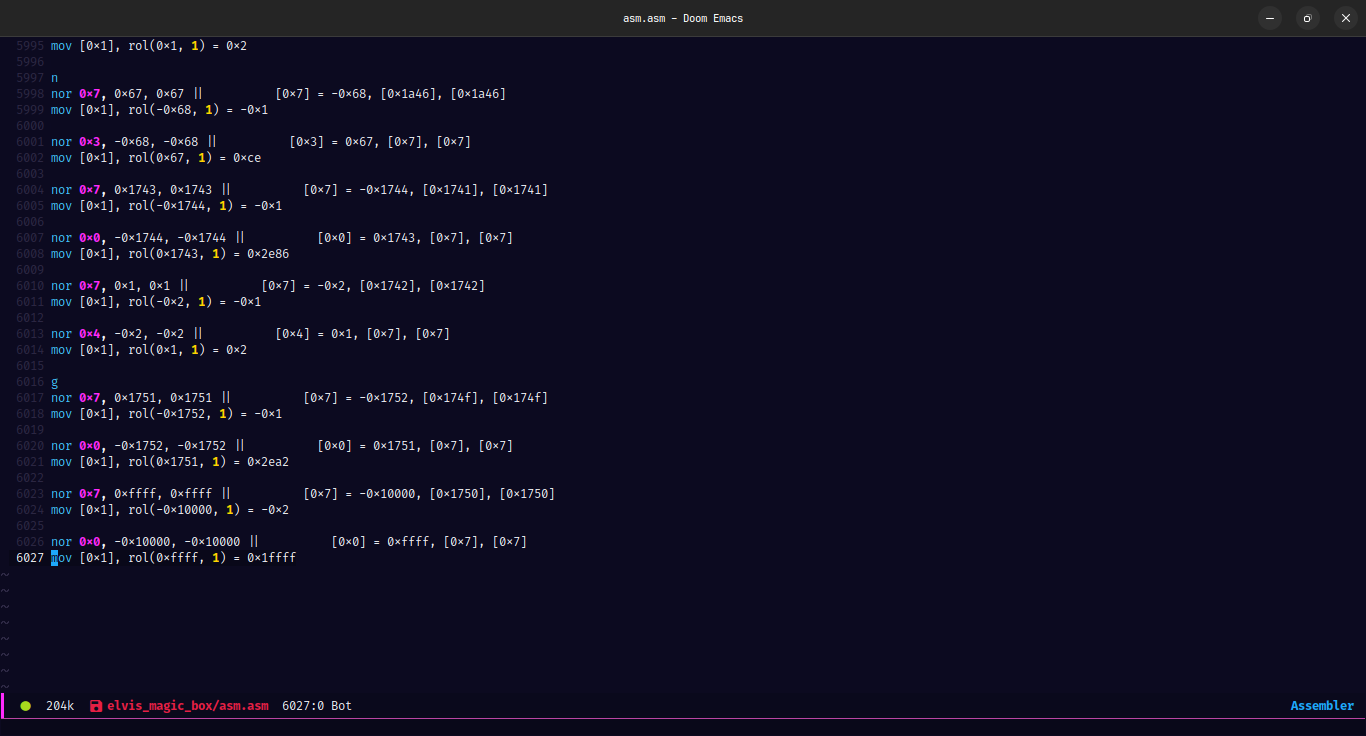

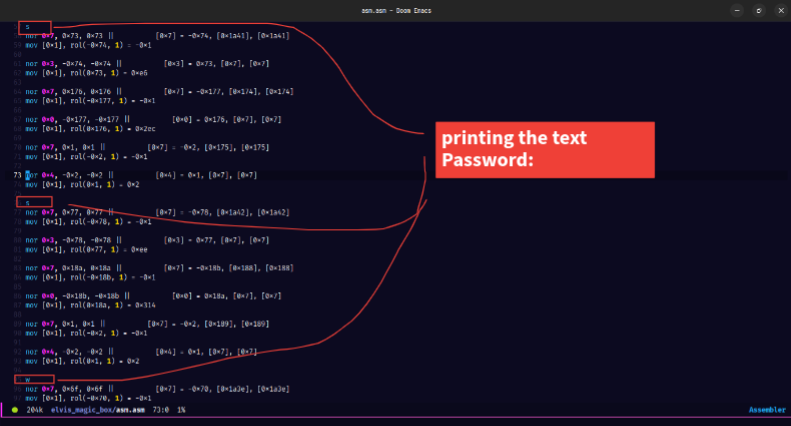

Phew! too many lines of code, but there’s a patter to it! You can check it at this pastebin.
Also, after the input of 26 characters (at once) it performs some checks and prints Wrong if the input is wrong.
Considering these changes and some limitations of python for doing bitwise operations, I wrote the disassembler in C++ (a language that I prefer over any other).
#include <iostream>
#include <fstream>
#include <cstdint>
#include <vector>
#include <string>
#include <cassert>
#define FILENAME "MagicBox_Challenge.exe"
#define VM_CODE_FILE_OFFSET 0x2618
#define VM_CODE_FILE_SIZE 0x3246
#define VM_CODE_VM_OFFSET 300
using namespace std;
typedef uint8_t u8;
typedef uint16_t u16;
typedef uint32_t u32;
typedef uint64_t u64;
typedef int8_t i8;
typedef int16_t i16;
typedef int32_t i32;
typedef int64_t i64;
// all instructions are NOR so we just need to specify operands
struct Instruction {
enum class Type {
NOR,
READ,
WRITE
};
Type type;
u16 src1; u16 src1_val;
u16 src2; u16 src2_val;
u16 dst; u16 dst_val;
};
struct VmContext {
vector<u16> code;
// all parsed instructions
vector<Instruction> instructions;
void ParseInstructions();
void Disassemble();
void Solve();
};
template<typename DType>
DType rol(DType x, u8 n) {
assert(n <= sizeof(DType)*8 && "ROTATION POSITION CANNOT BE MORE THAN NUMBER OF BITS IN DATA TYPE");
return (x << n) | (x >> (sizeof(DType)*8 - n));
}
void VmContext::ParseInstructions() {
assert((code.size() != 0) && "NO INSTRUCTIONS TO PARSE!");
Instruction ins;
string flag(26, 'a');
u8 fl_idx = 0; // flag index;
u16 vip = code[0];
while(vip != 0xffff) {
vip = code[0];
ins.type = Instruction::Type::NOR;
if(code[4] == 1){
code[4] = 0;
ins.type = Instruction::Type::WRITE;
putchar(code[3]);
}
if(code[6] == 1){
code[6] = 0;
ins.type = Instruction::Type::READ;
code[5] = flag[fl_idx++]; // set dummy data
}
ins.src1 = code[vip];
ins.src1_val = code[ins.src1];
ins.src2 = code[vip + 1];
ins.src2_val = code[ins.src2];
ins.dst = code[vip + 2];
// this needs to be placed before the assignment
// because there are instructions that manipulate instruction ptr
code[0] = vip + 3;
code[ins.dst] = ~(code[ins.src1] | code[ins.src2]);
ins.dst_val = code[ins.dst];
code[1] = rol(code[ins.dst], 1);
// add this instruction to list of parsed instructions
instructions.push_back(ins);
}
}
void VmContext::Solve() {
assert((code.size() != 0) && "NO INSTRUCTIONS TO PARSE!");
// create copy of code backup
vector<u16> code_bak = code;
Instruction ins;
string printable = "abcdefghijklmnopqrstuvwxyzABCDEFGHIJKLMNOPQRSTUVWXYZ1234567890!@#$%^&*()~`,./\\\"';:[]{}-_=+|";
u8 prnt_idx = 0;
string flag(26, 'a');
u8 fl_idx = 0; // flag index;
u8 fl_pos = 0; // flag correction position
u16 vip = code[0];
while(vip != 0xffff) {
vip = code[0];
ins.type = Instruction::Type::NOR;
if(code[4] == 1){
code[4] = 0;
ins.type = Instruction::Type::WRITE;
// putchar(code[3]);
}
if(code[6] == 1){
code[6] = 0;
ins.type = Instruction::Type::READ;
code[5] = flag[fl_idx++]; // set dummy data
}
ins.src1 = code[vip];
ins.src1_val = code[ins.src1];
ins.src2 = code[vip + 1];
ins.src2_val = code[ins.src2];
ins.dst = code[vip + 2];
// this needs to be placed before the assignment
// because there are instructions that manipulate instruction ptr
code[0] = vip + 3;
code[ins.dst] = ~(code[ins.src1] | code[ins.src2]);
ins.dst_val = code[ins.dst];
if(ins.dst == 0x1ee && ins.dst_val != 0){
flag[fl_pos] = printable[prnt_idx];
cout << "print_idx = " << int(prnt_idx) << "\tmodifying char at pos " << int(fl_pos) << " to " << printable[prnt_idx] << endl;
cout << flag << endl;
prnt_idx++;
if(prnt_idx >= printable.size()) {
cout << "not found for position " << fl_idx << endl;
prnt_idx++;
}
// begin execution again
code = code_bak;
fl_pos = 0;
fl_idx = 0;
} else if (ins.dst == 0x1ee && ins.dst_val == 0){
cout << endl << "fixed char at pos " << int(fl_pos) << " to " << flag[fl_pos] << endl;
cout << flag << endl;
fl_pos++;
}
if(fl_pos >= 26) break;
code[1] = rol(code[ins.dst], 1);
// add this instruction to list of parsed instructions
// instructions.push_back(ins);
}
}
void VmContext::Disassemble() {
for(u16 i = 0; i < instructions.size(); i++) {
if(instructions[i].src1 == instructions[i].src2 &&
instructions[i+1].src1 == instructions[i+1].src2 &&
instructions[i].dst == instructions[i+1].src1) {
if(instructions[i+1].dst == 0) cout << endl;
// this is a mov instruction
cout << " mov " << "[0x" << hex << instructions[i+1].dst << "], "
"[0x" << hex << instructions[i].src1 << "]"
<< " ; 0x" << hex << instructions[i+1].dst_val
<< ", 0x" << hex << instructions[i].src1_val << endl;
// two nor instructions take to make one mov instruction
i++;
} else {
// this is a normal nor instruction
cout << " nor " << "[0x" << hex << instructions[i].dst << "], "
<< "[0x" << hex << instructions[i].src1 << "], "
<< "[0x" << hex << instructions[i].src2 << "]"
<< " ; 0x" << hex << instructions[i].dst_val
<< ", 0x" << hex << instructions[i].src1_val
<< ", 0x" << hex << instructions[i].src2_val << endl;
}
}
}
/**
* Read data array from file.
* This can be used to read u8, u16, u32, u64 arrays from file
* given at specific offset in file and of specific size.
*
* The size of data must be divisible by the size of array requested.
*
* @param[out] data Data array returned of type `DType*`.
* Data array must be pre allocated. Just pass of where to
* read the whole raw data.
* @param[in] filename Name of file to read data from.
* @param[in] offset Offset of data array into file.
* @param[in] nelems Total number of elements in data array in file.
*
* @return void
* */
template <typename DType>
void GetDataArrayFromFile(DType* data, const string& filename, u64 offset, u64 nelems) {
assert((data != nullptr) && "NULL PASSED IN DATA POINTER. WHERE SHOULD I READ THE DATA THEN?");
// open file for reading in binary mode
ifstream file(filename, std::ios::binary);
// read data
file.seekg(offset, ios::beg);
file.read(reinterpret_cast<char*>(data), sizeof(DType)*nelems);
// close after all operations done
file.close();
}
int main() {
VmContext vm;
// allocate very large space for the whole VM at the beginning
vm.code.resize(0x4000);
// read bytecode into this array
GetDataArrayFromFile(vm.code.data() + VM_CODE_VM_OFFSET, FILENAME, VM_CODE_FILE_OFFSET, VM_CODE_FILE_SIZE/sizeof(u16));
vm.code[0] = VM_CODE_VM_OFFSET; // set starting instruction pointer
// parse all instructions
// vm.ParseInstructions();
// vm.Disassemble();
vm.Solve();
return EXIT_SUCCESS;
}

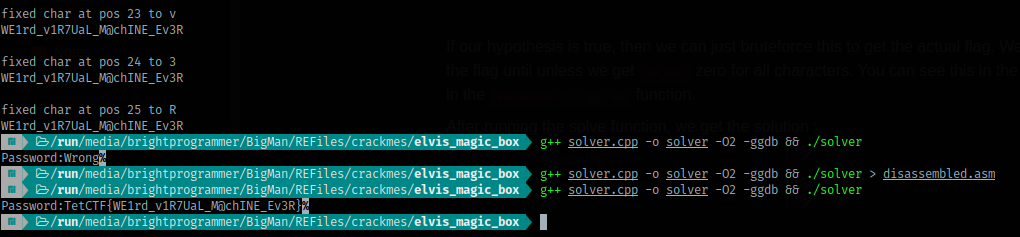

For disassembling the bytecode, I pass a fake flag filled with ‘a’ (26 character string with only ‘a’).
Password:Wrong mov [0x3], [0x1a40] ; 0x50, 0x50
mov [0x0], [0x138] ; 0x13a, 0x13a
mov [0x4], [0x139] ; 0x1, 0x1
mov [0x3], [0x1a3f] ; 0x61, 0x61
mov [0x0], [0x14c] ; 0x14e, 0x14e
mov [0x4], [0x14d] ; 0x1, 0x1
mov [0x3], [0x1a41] ; 0x73, 0x73
mov [0x0], [0x160] ; 0x162, 0x162
mov [0x4], [0x161] ; 0x1, 0x1
mov [0x3], [0x1a41] ; 0x73, 0x73
mov [0x0], [0x174] ; 0x176, 0x176
mov [0x4], [0x175] ; 0x1, 0x1
mov [0x3], [0x1a42] ; 0x77, 0x77
mov [0x0], [0x188] ; 0x18a, 0x18a
mov [0x4], [0x189] ; 0x1, 0x1
mov [0x3], [0x1a3e] ; 0x6f, 0x6f
mov [0x0], [0x19c] ; 0x19e, 0x19e
mov [0x4], [0x19d] ; 0x1, 0x1
mov [0x3], [0x1a3d] ; 0x72, 0x72
mov [0x0], [0x1b0] ; 0x1b2, 0x1b2
mov [0x4], [0x1b1] ; 0x1, 0x1
mov [0x3], [0x1a44] ; 0x64, 0x64
mov [0x0], [0x1c4] ; 0x1c6, 0x1c6
mov [0x4], [0x1c5] ; 0x1, 0x1
mov [0x3], [0x1a48] ; 0x3a, 0x3a
mov [0x0], [0x1d8] ; 0x1da, 0x1da
mov [0x4], [0x1d9] ; 0x1, 0x1
mov [0x0], [0x1e6] ; 0x1e8, 0x1e8
mov [0x0], [0x1e7] ; 0x1ef, 0x1ef
mov [0x0], [0x1f5] ; 0x1f7, 0x1f7
mov [0x6], [0x1f6] ; 0x1, 0x1
mov [0x1a23], [0x5] ; 0x61, 0x61
mov [0x0], [0x209] ; 0x20b, 0x20b
mov [0x6], [0x20a] ; 0x1, 0x1
mov [0x1a24], [0x5] ; 0x61, 0x61
mov [0x0], [0x21d] ; 0x21f, 0x21f
mov [0x6], [0x21e] ; 0x1, 0x1
mov [0x1a25], [0x5] ; 0x61, 0x61
mov [0x0], [0x231] ; 0x233, 0x233
mov [0x6], [0x232] ; 0x1, 0x1
mov [0x1a26], [0x5] ; 0x61, 0x61
mov [0x0], [0x245] ; 0x247, 0x247
mov [0x6], [0x246] ; 0x1, 0x1
mov [0x1a27], [0x5] ; 0x61, 0x61
mov [0x0], [0x259] ; 0x25b, 0x25b
mov [0x6], [0x25a] ; 0x1, 0x1
mov [0x1a28], [0x5] ; 0x61, 0x61
mov [0x0], [0x26d] ; 0x26f, 0x26f
mov [0x6], [0x26e] ; 0x1, 0x1
mov [0x1a29], [0x5] ; 0x61, 0x61
mov [0x0], [0x281] ; 0x283, 0x283
mov [0x6], [0x282] ; 0x1, 0x1
mov [0x1a2a], [0x5] ; 0x61, 0x61
mov [0x0], [0x295] ; 0x297, 0x297
mov [0x6], [0x296] ; 0x1, 0x1
mov [0x1a2b], [0x5] ; 0x61, 0x61
mov [0x0], [0x2a9] ; 0x2ab, 0x2ab
mov [0x6], [0x2aa] ; 0x1, 0x1
mov [0x1a2c], [0x5] ; 0x61, 0x61
mov [0x0], [0x2bd] ; 0x2bf, 0x2bf
mov [0x6], [0x2be] ; 0x1, 0x1
mov [0x1a2d], [0x5] ; 0x61, 0x61
mov [0x0], [0x2d1] ; 0x2d3, 0x2d3
mov [0x6], [0x2d2] ; 0x1, 0x1
mov [0x1a2e], [0x5] ; 0x61, 0x61
mov [0x0], [0x2e5] ; 0x2e7, 0x2e7
mov [0x6], [0x2e6] ; 0x1, 0x1
mov [0x1a2f], [0x5] ; 0x61, 0x61
mov [0x0], [0x2f9] ; 0x2fb, 0x2fb
mov [0x6], [0x2fa] ; 0x1, 0x1
mov [0x1a30], [0x5] ; 0x61, 0x61
mov [0x0], [0x30d] ; 0x30f, 0x30f
mov [0x6], [0x30e] ; 0x1, 0x1
mov [0x1a31], [0x5] ; 0x61, 0x61
mov [0x0], [0x321] ; 0x323, 0x323
mov [0x6], [0x322] ; 0x1, 0x1
mov [0x1a32], [0x5] ; 0x61, 0x61
mov [0x0], [0x335] ; 0x337, 0x337
mov [0x6], [0x336] ; 0x1, 0x1
mov [0x1a33], [0x5] ; 0x61, 0x61
mov [0x0], [0x349] ; 0x34b, 0x34b
mov [0x6], [0x34a] ; 0x1, 0x1
mov [0x1a34], [0x5] ; 0x61, 0x61
mov [0x0], [0x35d] ; 0x35f, 0x35f
mov [0x6], [0x35e] ; 0x1, 0x1
mov [0x1a35], [0x5] ; 0x61, 0x61
mov [0x0], [0x371] ; 0x373, 0x373
mov [0x6], [0x372] ; 0x1, 0x1
mov [0x1a36], [0x5] ; 0x61, 0x61
mov [0x0], [0x385] ; 0x387, 0x387
mov [0x6], [0x386] ; 0x1, 0x1
mov [0x1a37], [0x5] ; 0x61, 0x61
mov [0x0], [0x399] ; 0x39b, 0x39b
mov [0x6], [0x39a] ; 0x1, 0x1
mov [0x1a38], [0x5] ; 0x61, 0x61
mov [0x0], [0x3ad] ; 0x3af, 0x3af
mov [0x6], [0x3ae] ; 0x1, 0x1
mov [0x1a39], [0x5] ; 0x61, 0x61
mov [0x0], [0x3c1] ; 0x3c3, 0x3c3
mov [0x6], [0x3c2] ; 0x1, 0x1
mov [0x1a3a], [0x5] ; 0x61, 0x61
mov [0x0], [0x3d5] ; 0x3d7, 0x3d7
mov [0x6], [0x3d6] ; 0x1, 0x1
mov [0x1a3b], [0x5] ; 0x61, 0x61
mov [0x0], [0x3e9] ; 0x3eb, 0x3eb
mov [0x6], [0x3ea] ; 0x1, 0x1
mov [0x1a3c], [0x5] ; 0x61, 0x61
After taking the complete flag as input, there are two things that can happen, either the program checks the flag byte by byte and exits if there is something wrong, or checks the complete flag at once. If it’s former, then it’s the easiest case because we’d just have to maximize the runtime, but if it’s the latter case then it might be painful.
I spent some time analyzing the check method (after taking flag input) and noticed some things :

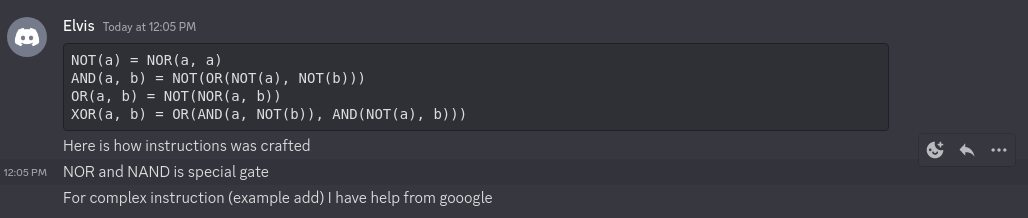

- If two variables are equal and you have to check this in the
NORvm then you take negation of one variable (norwith itself) and takenorof this new value with the other variable. If the result is zero then these two variables are same, else not. - there is one specific address that is referenced multiple times, the
[0x1ee]address. Using the concept above, I noticed that it perfomes some checks on each character of flag and stores the compared value in this address.
This means if our flag is correct then at every stage, we’d have value 0 at this [0x1ee] address.
;; 0x1a23 is first character of input
;; 0x1a0e is comparision char
mov [0x0], [0x3fd] ; 0x400, 0x400
nor [0x3fe], [0x1a23], [0x1a23] ; 0xff9e, 0x61, 0x61
nor [0x3ff], [0x1a0e], [0x1a0e] ; 0xffa8, 0x57, 0x57
mov [0x0], [0x40c] ; 0x40f, 0x40f
nor [0x40d], [0x1a23], [0x1a23] ; 0xff9e, 0x61, 0x61
nor [0x40e], [0x3ff], [0x3ff] ; 0x57, 0xffa8, 0xffa8
nor [0x7], [0x40d], [0x40e] ; 0x20, 0xff9e, 0x57
mov [0x3ff], [0x7] ; 0x20, 0x20
;; finally comapred value will be stored in [0x1ee] here
mov [0x0], [0x424] ; 0x427, 0x427
nor [0x425], [0x1a0e], [0x1a0e] ; 0xffa8, 0x57, 0x57
nor [0x426], [0x3fe], [0x3fe] ; 0x61, 0xff9e, 0xff9e
nor [0x7], [0x425], [0x426] ; 0x16, 0xffa8, 0x61
mov [0x3fe], [0x7] ; 0x16, 0x16
nor [0x7], [0x3fe], [0x3ff] ; 0xffc9, 0x16, 0x20
nor [0x1a0d], [0x7], [0x7] ; 0x36, 0xffc9, 0xffc9
nor [0x7], [0x1a0d], [0x1ee] ; 0xffc9, 0x36, 0x0
nor [0x1ee], [0x7], [0x7] ; 0x36, 0xffc9, 0xffc9
;; 0x1a24 and 0x1a23 are 2nd and 1st characters of input
mov [0x0], [0x448] ; 0x44b, 0x44b
nor [0x449], [0x1a24], [0x1a24] ; 0xff9e, 0x61, 0x61
nor [0x44a], [0x1a23], [0x1a23] ; 0xff9e, 0x61, 0x61
mov [0x0], [0x457] ; 0x45a, 0x45a
nor [0x458], [0x1a24], [0x1a24] ; 0xff9e, 0x61, 0x61
nor [0x459], [0x44a], [0x44a] ; 0x61, 0xff9e, 0xff9e
nor [0x7], [0x458], [0x459] ; 0x0, 0xff9e, 0x61
mov [0x44a], [0x7] ; 0x0, 0x0
mov [0x0], [0x46f] ; 0x472, 0x472
nor [0x470], [0x1a23], [0x1a23] ; 0xff9e, 0x61, 0x61
nor [0x471], [0x449], [0x449] ; 0x61, 0xff9e, 0xff9e
nor [0x7], [0x470], [0x471] ; 0x0, 0xff9e, 0x61
mov [0x449], [0x7] ; 0x0, 0x0
nor [0x7], [0x449], [0x44a] ; 0xffff, 0x0, 0x0
nor [0x1a0d], [0x7], [0x7] ; 0x0, 0xffff, 0xffff
;; 0x1a0d should now contain 0x12 because there is a check
;; not on 0x1a23 and 0x1a24 but 0x1a0f and 0x1a0d
mov [0x0], [0x48d] ; 0x490, 0x490
nor [0x48e], [0x1a0d], [0x1a0d] ; 0xffff, 0x0, 0x0
nor [0x48f], [0x1a0f], [0x1a0f] ; 0xffed, 0x12, 0x12
mov [0x0], [0x49c] ; 0x49f, 0x49f
nor [0x49d], [0x1a0d], [0x1a0d] ; 0xffff, 0x0, 0x0
nor [0x49e], [0x48f], [0x48f] ; 0x12, 0xffed, 0xffed
nor [0x7], [0x49d], [0x49e] ; 0x0, 0xffff, 0x12
mov [0x48f], [0x7] ; 0x0, 0x0
;; compared value of 0x1a0d and 0x1a0f is stored in 0x1ee
mov [0x0], [0x4b4] ; 0x4b7, 0x4b7
nor [0x4b5], [0x1a0f], [0x1a0f] ; 0xffed, 0x12, 0x12
nor [0x4b6], [0x48e], [0x48e] ; 0x0, 0xffff, 0xffff
nor [0x7], [0x4b5], [0x4b6] ; 0x12, 0xffed, 0x0
mov [0x48e], [0x7] ; 0x12, 0x12
nor [0x7], [0x48e], [0x48f] ; 0xffed, 0x12, 0x0
nor [0x1a0d], [0x7], [0x7] ; 0x12, 0xffed, 0xffed
nor [0x7], [0x1a0d], [0x1ee] ; 0xffc9, 0x12, 0x36
nor [0x1ee], [0x7], [0x7] ; 0x36, 0xffc9, 0xffc9
If our hypothesis is true, then we can just bruteforce this to get the actual flag. We’ll keep modifying the flag until unless we get 0x1ee zero for all characters. You can see this in the C++ code above in the VmContext::Solve function.
After running the solve function, we get the solution :
and then putting this as input in the VmContext::ParseInstructions method will print this flag.
Ending Notes

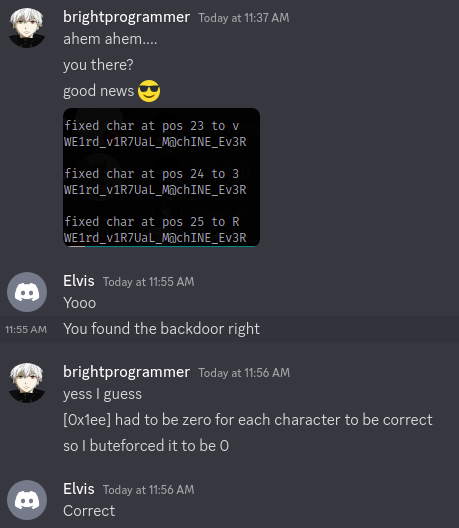

After solving this, I informed Elvis about my solution and turns out this is the shortcut he was referring to. He thought the challenge will be too hard so he made it this way so we can bruteforce to get the solution. The actual expected solution is completely different but amazing. Apparently, even in the CTF, no one solved it the actual way and performed bruteforce like this.
This is the source code of this chall :
https://github.com/ElvisBlue/magicbox
And here are some links that he provided :
GoogleCTF 2022 - eldar (333 pt / 14 solves)
The NOR Machine: Build a CPU with Only One Instruction
Add two integers using only bitwise operators?
Also, it would have been much easier if I just spent some time thinking about how to emulate other instructions instead of just mov.
So, this was my solution of this completely different VM challenge. I think I will now try to solve this challenge the way it’s intended to be solved and maybe I’ll do a writeup on that too.
