Investigating Object Inheritance In Compiled C++ Code
Table of Contents
Without Inheritance
No Virtual Member
Now just with a class with a private large field, a public member function and no virtual members.
#include <stdio.h>
#define NOINL __attribute__((noinline))
class Exception {
public:
void what();
};
NOINL void Exception::what() {
puts("Exception::what");
}
int main(int argc, char** argv) {
Exception e;
e.what();
}
;; compiled assembly
;; x86-64 gcc 15.2
;; compile flags: -O2
.LC0:
.string "Exception::what"
Exception::what():
mov edi, OFFSET FLAT:.LC0
jmp puts
main:
sub rsp, 24
lea rdi, [rsp+15]
call Exception::what()
xor eax, eax
add rsp, 24
ret
Information
Observation
- No virtual table created.
Just One Virtual Member
Now just with a class with a private large field, a public member function and a public virtual member function
#include <stdio.h>
#define NOINL __attribute__((noinline))
class Exception {
public:
void what();
virtual void detailed_message();
};
NOINL void Exception::what() {
puts("Exception::what");
}
NOINL void Exception::detailed_message() {
puts("Exception::detailed_message");
}
int main(int argc, char** argv) {
Exception e;
e.what();
e.detailed_message();
}
;; compiled assembly
;; x86-64 gcc 15.2
;; compile flags: -O2
.LC0:
.string "Exception::detailed_message"
Exception::detailed_message():
mov edi, OFFSET FLAT:.LC0
jmp puts
.LC1:
.string "Exception::what"
Exception::what():
mov edi, OFFSET FLAT:.LC1
jmp puts
main:
sub rsp, 24
lea rdi, [rsp+8] ;; this (pointer to Exception e)
call Exception::what()
lea rdi, [rsp+8] ;; this
call Exception::detailed_message()
xor eax, eax
add rsp, 24
ret
typeinfo name for Exception:
.string "9Exception"
typeinfo for Exception:
.quad vtable for __cxxabiv1::__class_type_info+16
.quad typeinfo name for Exception
vtable for Exception:
.quad 0
.quad typeinfo for Exception
.quad Exception::detailed_message()
Information
Observations
- A virtual table is created even when there’s no child class inheriting from this one.
- Calling functions does not initialize or change virtual table anywhere in this case.
- Virtual tables are stored pre-initialized, ready for the program loader to resolve linkages and start execution.
RTTIforExceptionis stored just before function pointer to very first virtual function.- The very first entry in virtual table is 0
- To get pointer to the very first virtual function in virtual table,
16bytes is added to the pointer to virtual function table. typeinfostruct contains a pointer to first virtual function pointer in vtable of__cxxabiv1::__class_type_info.
Information
Questions
- Is the first virtual table entry for destructor?
- Does the order in which virtual function pointers are stored in virtual table change with the order in which they’re defined?
- What is
__cxxabiv1::__class_type_info?
Thanks to decompiler explorer, these names are demangled for us automatically, otherwise reading this would’ve been a bit difficult.
Two Virtual Members
#include <stdio.h>
#define NOINL __attribute__((noinline))
class Exception {
public:
void what();
virtual void detailed_message();
virtual void open_doc();
};
NOINL void Exception::what() {
puts("Exception::what");
}
NOINL void Exception::detailed_message() {
puts("Exception::detailed_message");
}
NOINL void Exception::open_doc() {
puts("Exception::open_doc");
}
int main(int argc, char** argv) {
Exception e;
e.what();
e.detailed_message();
e.open_doc();
}
;; compiled assembly
;; x86-64 gcc 15.2
;; compile flags: -O2
.LC0:
.string "Exception::detailed_message"
Exception::detailed_message():
mov edi, OFFSET FLAT:.LC0
jmp puts
.LC1:
.string "Exception::open_doc"
Exception::open_doc():
mov edi, OFFSET FLAT:.LC1
jmp puts
.LC2:
.string "Exception::what"
Exception::what():
mov edi, OFFSET FLAT:.LC2
jmp puts
main:
sub rsp, 24
lea rdi, [rsp+8]
call Exception::what()
lea rdi, [rsp+8]
call Exception::detailed_message()
lea rdi, [rsp+8]
call Exception::open_doc()
xor eax, eax
add rsp, 24
ret
typeinfo name for Exception:
.string "9Exception"
typeinfo for Exception:
.quad vtable for __cxxabiv1::__class_type_info+16
.quad typeinfo name for Exception
vtable for Exception:
.quad 0
.quad typeinfo for Exception
.quad Exception::detailed_message()
.quad Exception::open_doc()
Information
Observations
- Pointer to the second virtual function was just appended in the order in which these functions are declared.
- After playing with this code, I notice that the order of virtual functions in vtable is same as the order in which they’re declared inside the class.
All Virtual Functions Private
#include <stdio.h>
#define NOINL __attribute__((noinline))
class Exception {
public:
void what(){
detailed_message();
open_doc();
}
private:
NOINL virtual void detailed_message() {
puts("Exception::detailed_message");
}
NOINL virtual void open_doc() {
puts("Exception::open_doc");
}
};
int main(int argc, char** argv) {
Exception e;
e.what();
}
;; compiled assembly
;; x86-64 gcc 15.2
;; compile flags: -O2
.LC0:
.string "Exception::open_doc"
Exception::open_doc():
mov edi, OFFSET FLAT:.LC0
jmp puts
.LC1:
.string "Exception::detailed_message"
Exception::detailed_message():
mov edi, OFFSET FLAT:.LC1
jmp puts
main:
sub rsp, 24
mov QWORD PTR [rsp+8], OFFSET FLAT:vtable for Exception+16
lea rdi, [rsp+8]
call Exception::detailed_message()
lea rdi, [rsp+8]
call Exception::open_doc()
xor eax, eax
add rsp, 24
ret
typeinfo name for Exception:
.string "9Exception"
typeinfo for Exception:
.quad vtable for __cxxabiv1::__class_type_info+16
.quad typeinfo name for Exception
vtable for Exception:
.quad 0
.quad typeinfo for Exception
.quad Exception::detailed_message()
.quad Exception::open_doc()
Information
Observations
- VTable created like regular.

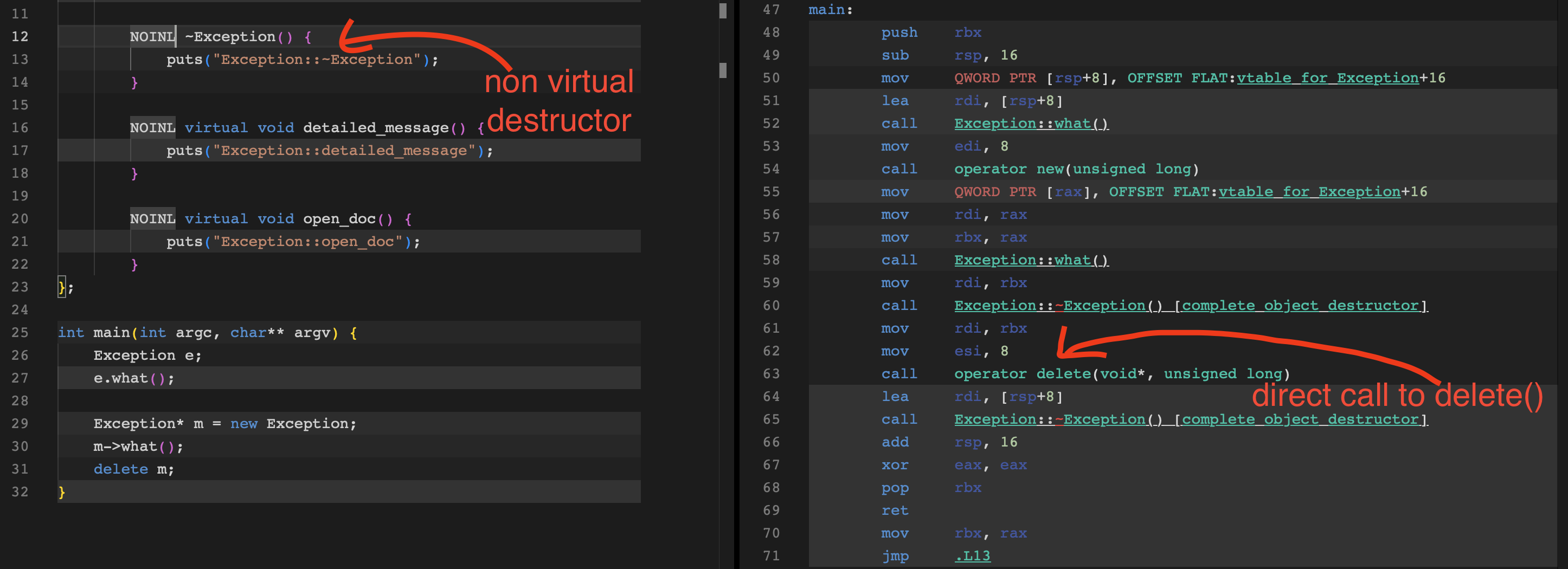

With Destructor
#include <stdio.h>
#define NOINL __attribute__((noinline))
class Exception {
public:
NOINL void what(){
detailed_message();
open_doc();
}
NOINL ~Exception() {
puts("Exception::~Exception");
}
NOINL virtual void detailed_message() {
puts("Exception::detailed_message");
}
NOINL virtual void open_doc() {
puts("Exception::open_doc");
}
};
int main(int argc, char** argv) {
Exception e;
e.what();
}
;; compiled assembly
;; x86-64 gcc 15.2
;; compile flags: -O2
.LC0:
.string "Exception::open_doc"
Exception::open_doc():
mov edi, OFFSET FLAT:.LC0
jmp puts
.LC1:
.string "Exception::detailed_message"
Exception::detailed_message():
mov edi, OFFSET FLAT:.LC1
jmp puts
;; The assumption that rdi is related to some function pointer comes from me
;; reading main() first and seeing what's passed to it
Exception::what():
sub rsp, 24
;; [rdi] means deref (pointer to (pointer to (function pointer)))
;; rax now contains (pointer to (function pointer))
mov rax, QWORD PTR [rdi]
;; v8 = (pointer to (pointer to (function pointer)))
mov QWORD PTR [rsp+8], rdi
;; rax = deref (pointer to (function pointer))
;; or rax = (function pointer)
mov rax, QWORD PTR [rax]
;; check if rax(function pointer) same as (function pointer) to detailed message
;; if rax does not contain (function) pointer to Exception::detailed_message
;; then call whatever's there in L5
cmp rax, OFFSET FLAT:Exception::detailed_message()
jne .L5 <<----------------------------------------------------------------------------------\
|
;; if it is the Exception::detailed_message pointer then call it |
call Exception::detailed_message() |
|
;; Get (function pointer) of Exception::open_doc by offsetting pointer by 8 |
;; in a way similar to how we got (function pointer) for Exception::detailed_message |
mov rdi, QWORD PTR [rsp+8] |
mov rax, QWORD PTR [rdi] |
mov rax, QWORD PTR [rax+8] |
|
;; If retrieved (function pointer) is not Exception::open_doc |
;; then just call whatever's in there in L7 |
cmp rax, OFFSET FLAT:Exception::open_doc() |
jne .L7 <<----------------------------------------------------------------------------\ |
| |
;; if it is Exception::open_doc then restore stack and jump (why not making a call?) | |
.L9: | |
add rsp, 24 | |
jmp Exception::open_doc() | |
| |
;; coming from here ----------------------------------------------------------------------|-----/
.L5: |
call rax |
mov rdi, QWORD PTR [rsp+8] |
mov rax, QWORD PTR [rdi] |
mov rax, QWORD PTR [rax+8] |
cmp rax, OFFSET FLAT:Exception::open_doc() |
je .L9 |
|
;; coming from here ----------------------------------------------------------------------/
.L7:
add rsp, 24
jmp rax
.LC2:
.string "Exception::~Exception"
Exception::~Exception() [base object destructor]:
sub rsp, 8
mov QWORD PTR [rdi], OFFSET FLAT:vtable for Exception+16
mov edi, OFFSET FLAT:.LC2
call puts
add rsp, 8
ret
;; create an alias for base object destructor and call it complete object destructor
.set Exception::~Exception() [complete object destructor],Exception::~Exception() [base object destructor]
main:
push rbx
sub rsp, 16
;; v8 = (pointer to (function pointer Exception::detailed_message))
mov QWORD PTR [rsp+8], OFFSET FLAT:vtable for Exception+16
;; Exception::what(&v8)
;; or Exception::what((pointer to (pointer to (function pointer Exception::detailed message))))
lea rdi, [rsp+8]
call Exception::what()
;; Exception::~Exception(&v8)
;; or Exception::~Exception((pointer to (pointer to (function pointer Exception::detailed_message))))
lea rdi, [rsp+8]
call Exception::~Exception() [complete object destructor]
;; restore stack, return 0
add rsp, 16
xor eax, eax
pop rbx
ret
mov rbx, rax
jmp .L13
;; no one seems to be coming here
main.cold:
.L13:
lea rdi, [rsp+8]
call Exception::~Exception() [complete object destructor]
mov rdi, rbx
call _Unwind_Resume
;; standard type information and vtables
typeinfo name for Exception:
.string "9Exception"
typeinfo for Exception:
.quad vtable for __cxxabiv1::__class_type_info+16
.quad typeinfo name for Exception
vtable for Exception:
.quad 0
.quad typeinfo for Exception
.quad Exception::detailed_message()
.quad Exception::open_doc()
Information
Observations
- Code suddenly became a bit more complex just with the presence of a non-virtual destructor
- I see some random checks in
Exception::what()what seem redundant. It’s checking if pointer in vtable is same as pointer it’s guessing and even if it’s not, it’s calling it anyways. - Vtable layout remains same.
Information
Questions
- Are those checks to see if function pointer is same as expected, really required? Are these checks present always?
Virtual Destructor
#include <stdio.h>
#define NOINL __attribute__((noinline))
class Exception {
public:
NOINL void what(){
detailed_message();
open_doc();
}
NOINL virtual ~Exception() {
puts("Exception::~Exception");
}
NOINL virtual void detailed_message() {
puts("Exception::detailed_message");
}
NOINL virtual void open_doc() {
puts("Exception::open_doc");
}
};
int main(int argc, char** argv) {
Exception e;
e.what();
}
;; compiled assembly
;; x86-64 gcc 15.2
;; compile flags: -O2
.LC0:
.string "Exception::open_doc"
Exception::open_doc():
mov edi, OFFSET FLAT:.LC0
jmp puts
.LC1:
.string "Exception::detailed_message"
Exception::detailed_message():
mov edi, OFFSET FLAT:.LC1
jmp puts
.LC2:
.string "Exception::~Exception"
Exception::~Exception() [base object destructor]:
sub rsp, 8
mov QWORD PTR [rdi], OFFSET FLAT:vtable for Exception+16
mov edi, OFFSET FLAT:.LC2
call puts
add rsp, 8
ret
.set Exception::~Exception() [complete object destructor],Exception::~Exception() [base object destructor]
Exception::~Exception() [deleting destructor]:
sub rsp, 24
mov QWORD PTR [rsp+8], rdi
call Exception::~Exception() [complete object destructor]
mov rdi, QWORD PTR [rsp+8]
mov esi, 8
add rsp, 24
jmp operator delete(void*, unsigned long)
Exception::what():
sub rsp, 24
mov rax, QWORD PTR [rdi]
mov QWORD PTR [rsp+8], rdi
mov rax, QWORD PTR [rax+16]
cmp rax, OFFSET FLAT:Exception::detailed_message()
jne .L9
call Exception::detailed_message()
mov rdi, QWORD PTR [rsp+8]
mov rax, QWORD PTR [rdi]
mov rax, QWORD PTR [rax+24]
cmp rax, OFFSET FLAT:Exception::open_doc()
jne .L11
.L13:
add rsp, 24
jmp Exception::open_doc()
.L9:
call rax
mov rdi, QWORD PTR [rsp+8]
mov rax, QWORD PTR [rdi]
mov rax, QWORD PTR [rax+24]
cmp rax, OFFSET FLAT:Exception::open_doc()
je .L13
.L11:
add rsp, 24
jmp rax
main:
;; setup stack
push rbx
sub rsp, 16
;; var8 = (pointer to (function pointer Exception::~Exception [complete object destructor]))
mov QWORD PTR [rsp+8], OFFSET FLAT:vtable for Exception+16
;; rdi = &var8
;; or rdi = (pointer to (pointer to (function pointer Exception::~Exception [complete object destructor])))
;; Exception::what(&var8)
lea rdi, [rsp+8]
call Exception::what()
;; Exception::~Exception() [complete object destructor]
lea rdi, [rsp+8]
call Exception::~Exception() [complete object destructor]
;; restore stack and exit
add rsp, 16
xor eax, eax
pop rbx
ret
mov rbx, rax
jmp .L15
main.cold:
.L15:
lea rdi, [rsp+8]
call Exception::~Exception() [complete object destructor]
mov rdi, rbx
call _Unwind_Resume
typeinfo name for Exception:
.string "9Exception"
typeinfo for Exception:
.quad vtable for __cxxabiv1::__class_type_info+16
.quad typeinfo name for Exception
vtable for Exception:
.quad 0
.quad typeinfo for Exception
.quad Exception::~Exception() [complete object destructor] ;; new here
.quad Exception::~Exception() [deleting destructor] ;; new here
.quad Exception::detailed_message() ;; moved down
.quad Exception::open_doc()
Information
Observations
Exception::open_docandException::detailed_messageremained same as expected- A new destructor
deleting destructor complete object destructoris an alias ofbase object destructor.base object destructoris the actual destructor code we wrote.deleting destructorcode is defined but never called.- Code for
Exception::whatis exacly like without virtual destructor, except that it adjusts for function pointers to find the first virtual function (not destructor). deleting destructorandcomplete object destructorare set as first two virtual functions in vtable.- Functions that used to be first are shifted down the vtable with presence of a single virtual destructor.
Virtual Destructor With new and delete
#include <stdio.h>
#define NOINL __attribute__((noinline))
class Exception {
public:
NOINL void what(){
detailed_message();
open_doc();
}
NOINL virtual ~Exception() {
puts("Exception::~Exception");
}
NOINL virtual void detailed_message() {
puts("Exception::detailed_message");
}
NOINL virtual void open_doc() {
puts("Exception::open_doc");
}
};
int main(int argc, char** argv) {
Exception e;
e.what();
Exception* m = new Exception;
m->what();
delete m;
}
;; compiled assembly
;; x86-64 gcc 15.2
;; compile flags: -O2
.LC0:
.string "Exception::open_doc"
Exception::open_doc():
mov edi, OFFSET FLAT:.LC0
jmp puts
.LC1:
.string "Exception::detailed_message"
Exception::detailed_message():
mov edi, OFFSET FLAT:.LC1
jmp puts
.LC2:
.string "Exception::~Exception"
Exception::~Exception() [base object destructor]:
sub rsp, 8
mov QWORD PTR [rdi], OFFSET FLAT:vtable for Exception+16
mov edi, OFFSET FLAT:.LC2
call puts
add rsp, 8
ret
.set Exception::~Exception() [complete object destructor],Exception::~Exception() [base object destructor]
Exception::~Exception() [deleting destructor]:
sub rsp, 24
mov QWORD PTR [rsp+8], rdi
call Exception::~Exception() [complete object destructor]
mov rdi, QWORD PTR [rsp+8]
mov esi, 8
add rsp, 24
jmp operator delete(void*, unsigned long)
Exception::what():
sub rsp, 24
mov rax, QWORD PTR [rdi]
mov QWORD PTR [rsp+8], rdi
mov rax, QWORD PTR [rax+16]
cmp rax, OFFSET FLAT:Exception::detailed_message()
jne .L9
call Exception::detailed_message()
mov rdi, QWORD PTR [rsp+8]
mov rax, QWORD PTR [rdi]
mov rax, QWORD PTR [rax+24]
cmp rax, OFFSET FLAT:Exception::open_doc()
jne .L11
.L13:
add rsp, 24
jmp Exception::open_doc()
.L9:
call rax
mov rdi, QWORD PTR [rsp+8]
mov rax, QWORD PTR [rdi]
mov rax, QWORD PTR [rax+24]
cmp rax, OFFSET FLAT:Exception::open_doc()
je .L13
.L11:
add rsp, 24
jmp rax
main:
push rbx
sub rsp, 16
mov QWORD PTR [rsp+8], OFFSET FLAT:vtable for Exception+16
lea rdi, [rsp+8]
call Exception::what()
mov edi, 8
;; m = new(Exception)
;; (uint64_t*)m[0] = (pointer to (function pointer Exception::~Exception [complete object destructor]))
call operator new(unsigned long)
mov QWORD PTR [rax], OFFSET FLAT:vtable for Exception+16
;; Exception::what(m)
mov rdi, rax
mov rbx, rax
call Exception::what()
mov rax, QWORD PTR [rbx]
mov rdi, rbx
call [QWORD PTR [rax+8]] ;; indirect call to Exception::~Exception() [deleting destructor]
lea rdi, [rsp+8]
call Exception::~Exception() [complete object destructor]
add rsp, 16
xor eax, eax
pop rbx
ret
mov rbx, rax
jmp .L15
main.cold:
.L15:
lea rdi, [rsp+8]
call Exception::~Exception() [complete object destructor]
mov rdi, rbx
call _Unwind_Resume
typeinfo name for Exception:
.string "9Exception"
typeinfo for Exception:
.quad vtable for __cxxabiv1::__class_type_info+16
.quad typeinfo name for Exception
vtable for Exception:
.quad 0
.quad typeinfo for Exception
.quad Exception::~Exception() [complete object destructor]
.quad Exception::~Exception() [deleting destructor]
.quad Exception::detailed_message()
.quad Exception::open_doc()
Information
Observations
Deleting destructorwas defined and present, but wasn’t used until unless we actuall usedeletein our code.- Calling
deleteon a class with virtual destructor ends up callingdeleting destructorof that class. - Making the same destructor non-virtual results in a direct call to
deleteinstead of through a destructor
image of assembly output when non-virtual destructor is used for same code
First Level of Inheritance
#include <stdio.h>
#define NOINL __attribute__((noinline))
class Exception {
public:
NOINL void what(){
detailed_message();
open_doc();
}
NOINL virtual ~Exception() {
puts("Exception::~Exception");
}
NOINL virtual void detailed_message() {
puts("Exception::detailed_message");
}
NOINL virtual void open_doc() {
puts("Exception::open_doc");
}
};
class DivByZero : public Exception {
};
int main(int argc, char** argv) {
DivByZero dbz;
dbz.what();
}
;; compiled assembly
;; x86-64 gcc 15.2
;; compile flags: -O2
.LC0:
.string "Exception::open_doc"
Exception::open_doc():
mov edi, OFFSET FLAT:.LC0
jmp puts
.LC1:
.string "Exception::detailed_message"
Exception::detailed_message():
mov edi, OFFSET FLAT:.LC1
jmp puts
.LC2:
.string "Exception::~Exception"
Exception::~Exception() [base object destructor]:
sub rsp, 8
mov QWORD PTR [rdi], OFFSET FLAT:vtable for Exception+16
mov edi, OFFSET FLAT:.LC2
call puts
add rsp, 8
ret
.set Exception::~Exception() [complete object destructor],Exception::~Exception() [base object destructor]
;; NEW BASE OBJECT DESTRUCTOR!!
;; calls base object destructor of it's parent
DivByZero::~DivByZero() [base object destructor]:
mov QWORD PTR [rdi], OFFSET FLAT:vtable for DivByZero+16
jmp Exception::~Exception() [base object destructor]
.set DivByZero::~DivByZero() [complete object destructor],DivByZero::~DivByZero() [base object destructor]
;; NEW DELETING DESTRUCTOR!!
;; calls base object destructor of parent and calls delete directly on self
;; why? because doesn't have it's own virtual destructor
DivByZero::~DivByZero() [deleting destructor]:
sub rsp, 24
mov QWORD PTR [rdi], OFFSET FLAT:vtable for DivByZero+16
mov QWORD PTR [rsp+8], rdi
call Exception::~Exception() [base object destructor]
mov rdi, QWORD PTR [rsp+8]
mov esi, 8
add rsp, 24
jmp operator delete(void*, unsigned long)
Exception::~Exception() [deleting destructor]:
sub rsp, 24
mov QWORD PTR [rsp+8], rdi
call Exception::~Exception() [complete object destructor]
mov rdi, QWORD PTR [rsp+8]
mov esi, 8
add rsp, 24
jmp operator delete(void*, unsigned long)
Exception::what():
sub rsp, 24
mov rax, QWORD PTR [rdi]
mov QWORD PTR [rsp+8], rdi
mov rax, QWORD PTR [rax+16]
cmp rax, OFFSET FLAT:Exception::detailed_message()
jne .L12
call Exception::detailed_message()
mov rdi, QWORD PTR [rsp+8]
mov rax, QWORD PTR [rdi]
mov rax, QWORD PTR [rax+24]
cmp rax, OFFSET FLAT:Exception::open_doc()
jne .L14
.L16:
add rsp, 24
jmp Exception::open_doc()
.L12:
call rax
mov rdi, QWORD PTR [rsp+8]
mov rax, QWORD PTR [rdi]
mov rax, QWORD PTR [rax+24]
cmp rax, OFFSET FLAT:Exception::open_doc()
je .L16
.L14:
add rsp, 24
jmp rax
;; calls functions from Exception class but with vtable of DivByZero class
;; Exception::what will perform some checks and correctly resolve to actual function
main:
push rbx
sub rsp, 16
mov QWORD PTR [rsp+8], OFFSET FLAT:vtable for DivByZero+16
lea rdi, [rsp+8]
call Exception::what()
mov QWORD PTR [rsp+8], OFFSET FLAT:vtable for DivByZero+16
lea rdi, [rsp+8]
call Exception::~Exception() [base object destructor]
add rsp, 16
xor eax, eax
pop rbx
ret
mov rbx, rax
jmp .L18
main.cold:
.L18:
mov QWORD PTR [rsp+8], OFFSET FLAT:vtable for DivByZero+16
lea rdi, [rsp+8]
call Exception::~Exception() [base object destructor]
mov rdi, rbx
call _Unwind_Resume
typeinfo name for Exception:
.string "9Exception"
typeinfo for Exception:
.quad vtable for __cxxabiv1::__class_type_info+16
.quad typeinfo name for Exception
;; A NEW TYPEINFO HERE!!
typeinfo name for DivByZero:
.string "9DivByZero"
typeinfo for DivByZero:
.quad vtable for __cxxabiv1::__si_class_type_info+16
.quad typeinfo name for DivByZero
.quad typeinfo for Exception
vtable for Exception:
.quad 0
.quad typeinfo for Exception
.quad Exception::~Exception() [complete object destructor]
.quad Exception::~Exception() [deleting destructor]
.quad Exception::detailed_message()
.quad Exception::open_doc()
;; A NEW VTABLE HERE!!
vtable for DivByZero:
.quad 0
.quad typeinfo for DivByZero
.quad DivByZero::~DivByZero() [complete object destructor]
.quad DivByZero::~DivByZero() [deleting destructor]
.quad Exception::detailed_message()
.quad Exception::open_doc()
